In order to fulfill different rugged and critical application needs, this compact embedded system supports isolated COM ports, isolated CAN bus, isolated Gigabit Power of Ethernet (PoE) ports, isolated DIO port and rich expansions. The outstanding tBOX312-870-FL is built for rugged working environments and meets the demand of vehicle applications that require e-Mark and ISO7637 certificates. Designed with numerous robust features, this IP40-rated computer is ideal for fleet management, toll system, intelligent transportation systems and much more.

“Axiomtek tBOX312-870-FL meets Safety Agency requirements and has passed severe tests such as drop, shock, vibration, wide temperature and HIPOT, making it ideal for transportation operating environments where spaces are limited. The outstanding industrial and high quality design gives tBOX312-870-FL the advantages of fanless operation and ruggedize form factor ideal for modern transportation applications,” said Ethan Wang, product manager of Product & Marketing Division at Axiomtek.

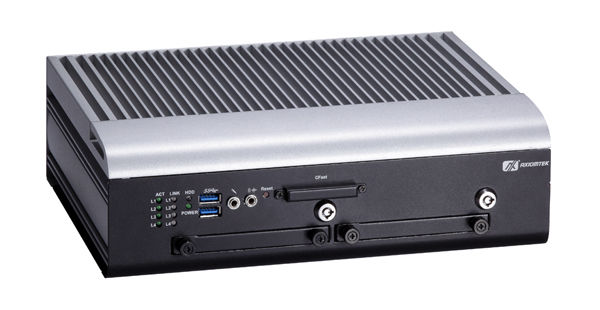

Two swappable and lockable 2.5 inch SATA3 hard drive bay and CFast™ socket, media can be easily and safely accessed from the front. Front LEDs design gives user an easy way to check the current system status. Thoughtful front accessible I/O cabling is very convenient for wiring and maintenance.

The new tBOX312-870-FL adopts an onboard Intel Core processor and onboard DRAM which greatly reduces the impact of vibration and shock ideally for vehicle applications. Its significant anti-vibration design can endure up to 5Grms (with CFast & SSD).

To prevent ESD and over-voltage, this compact-size embedded computer is equipped with three isolated RS-232/422/485 ports, one isolated CAN Bus, four isolated Gigabit Ethernet ports and one isolated digital I/O connector for offering excellent power protection.

For greater expansion capability, three internal PCI Express Mini Card slots are added into the system. One SIM slot is also available for 2G/3G/4G, GPS, WiFi and Bluetooth applications.

The tBOX312-870-FL is designed with IP40-rated dust-proof enclosure and can operate in critical environments with wide temperature ranging from -40°C to +70°C with W.T. SSD.
