Dual Output PolyPhase Step-Down DC/DC Voltage Mode Controller with Digital Power System Management

Published: Aug 15,2014

23 Read

Linear Technology Corporation announces the LTC3882, a dual output multiphase synchronous step-down DC/DC controller with a serial digital interface.

More on This

40VIN, 2A Silent Switcher µModule Regulator in 6.25mm x 4mm BGA Package

Analog Devices, Inc., which recently acquired Linear Technology Corporation, announces the LTM8063, a 40VIN, 2A µModule step-down regulator in a tiny 6...

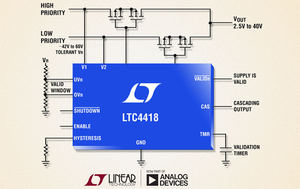

Dual Input Prioritizer Provides Low Quiescent Current Backup Supply Switchover Solution

Analog Devices, Inc., which recently acquired Linear Technology Corporation, announces the LTC4418, a dual input power prioritizer for 2...

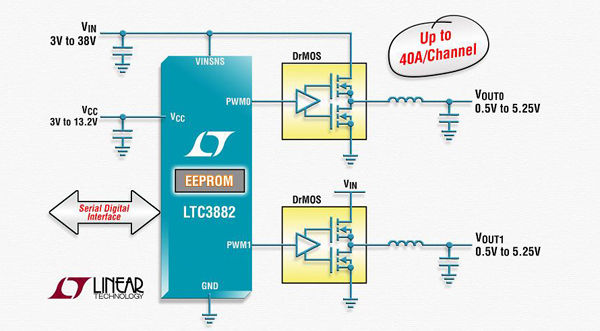

The LTC3882 uses leading- edge modulation voltage-m ode control for excellent transient response and operates with very low DCR (0.25 milliohm) inductors , enabling higher efficiency and up to 40A per output phase. Compatible power train devices include DrMOS, power blocks or discrete FET drivers and associated N-channel MOSFETs .

The digital interface enables system designers and remote operators to command and supervis e a system's power condition and consumption. The capability to digitally change power supply parameters reduces time-to-market and down time, eliminating what would typically require physical hardware, circuit, or system bill-of-material m odifications .

The LTC3882 simplifies system characterization, optimization and data mining during prototyping, deployment and field operation. Applications include optical transport systems, datacom and telecom switches and routers , industrial test equipment, robotics , RAID and enterpris e systems, where the cost of electrical utilities , cooling and maintenance are critical.

In addition to delivering power to a point-of-load, the LTC3882 features configurability and telemetry-monitoring of power and power management parameters over PMBus - an open standard I²C-bas ed digital serial interface protocol. The LTC3882's 2-wire serial interface enables outputs to be margined, tuned and ramped up and down at program mable slew rates with sequenced delay times. Input and output voltages and output currents , output power, temperature and peak values are readable.

The device is comprised of fast, dual analog control loops, precision mixed-signal circuitry, EEPROM and is housed in a 6mm x 6mm QFN-40 package.

To evaluate the perform ance of the LTC3882, the LTpowerPlay GUI (graphic user interface) is free for download. USB-to-PMBus converter and demo kits are also available. With +/-0.5% maximum DC output error over temperature, +/-1% current read back accuracy, integrated 16-bit Delta Sigma ADC and EEPROM, the LTC3882 com bines best-in-clas s analog switching regulator perform ance with precision mixed signal data acquisition.

It operates from an IC power supply between 3V and 13.2V and is intended for convers ion from VIN between 3V and 38V to output voltages between 0.5V and 5.25V. Channels can accurately share current in both steady state and transient conditions .

Up to four LTC3882s can operate in parallel for 2-, 3-, 4-, 6- or 8-phas e operation. At start-up, output voltages , switching frequency and channel phase angle assignments can be set by pin-strapping resistors or loaded from internal EEPROM. The LTC3882 internal operating temperature range is from -40°C to 125°C.

Features:

• PMBus/I2C Compliant Serial Interface

– Monitor Voltage, Current, Temperature and Faults

– Digitally Programmable Voltage, Current Limit, Soft-Start/Stop, Sequencing, Margining, AVP and UV/OV Thresholds

• 3V ≤ VINSNS ≤ 38V, 0.5V ≤ VOUT ≤ 5.25V

• ±0.5% Output Voltage Accuracy

• Programmable PWM Frequency or External Clock Synchronization from 250kHz to 1.25MHz

• Accurate PolyPhase Current Sharing

• Internal EEPROM with Fault Logging

• IC Supply Range: 3V to 13.2V

• Resistor or Inductor DCR Current Sensing

• Optional Resistor Programming for Key Parameters

• 40-Pin (6mm × 6mm) QFN Package
