Multiphase Vcore Solutions with Advanced PMBus Interface and Smart Power Stage

Published: Aug 21,2014

1192 Read

Texas Instruments (TI) introduced a complete multiphase core voltage (Vcore) power management system solution for enterprise servers, storage and high-end desktop applications.

More on This

Smallest Data Converters Deliver High Integration and Performance

Texas Instruments (TI) introduced four tiny precision data converters, each the industry’s smallest in its class. The ...

TI Introduces a New Family of LED Drivers with 12-bit PWM, 29-kHz Dimming Frequency

First 12-bit, 29-kHz RGB LED Driver Family Enables Vivid Color and Seamless Animation with Zero Audible Noise Texas I...

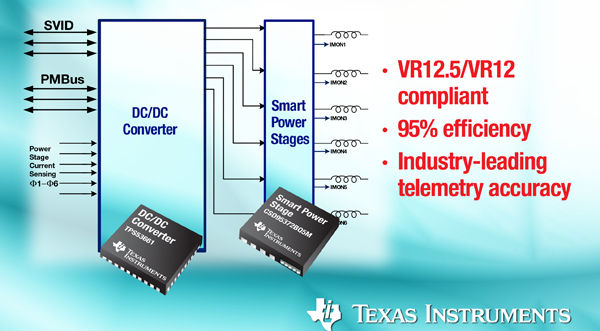

Compliant with Intel's VR12.5 and VR12 voltage regulation specifications, the TPS53661, TPS53641 and TPS53631 DC/DC controllers and CSD95372B and CSD95373B NexFET smart power stages are a state-of-the-art, digital multiphase solution to power the latest Intel Xeon processors.

The complete solution features industry-leading efficiency at up to 95-percent in the smallest footprint.

The TPS53661, TPS53641 and TPS53631 DC/DC controllers support 6-, 4- and 3-phase operation respectively, and incorporate TI's advanced D-CAP+ control architecture and a feature-rich PMBus command set.

The CSD95372B and CSD95373B synchronous buck NexFET smart power stage integrate an intelligent driver and power MOSFETs in a compact 5-mm by 6-mm package. Together, the products provide a complete multiphase Vcore system solution with superior transient performance, industry-benchmark telemetry accuracy and outstanding system reliability.

Features:

- TI's D-CAP+ architecture offers ultra-fast transient response. Its inherent design eliminates beat frequency.

- Dynamic current sharing and cycle-by-cycle current limit ensure robust multiphase regulator operation.

- Hybrid analog and digital topology delivers lowest quiescent power consumption, fastest dynamic performance and ultimate flexibility.

- Industry's smallest 5-mm by 5-mm package.
