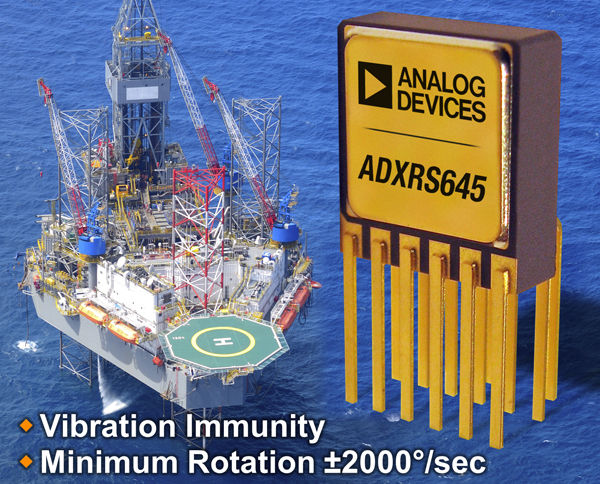

The ADXRS645 MEMS (micro-electromechanical) gyroscope provides excellent vibration immunity and a minimum rotational measurement range of ±2,000°/sec, which are critical performance criteria for drilling tools operating in harsh, high-temperature environments.

The ability to accurately sense angular rotation prevents drill string damage by detecting the difference between drill head rotation and the motor turning the drill. The ADXRS645 allows rig operators in the oil and gas industries to extend the life of their equipment and reduce costly downtime by ensuring that the drill string is operating properly.

The ADXRS645 joins ADI’s portfolio of precision high-temperature components designed for drilling applications, including the ADXL206 ±5g precision MEMS accelerometer, the AD8229 ultra-low-noise instrumentation amplifier, the ADR225 2.5-V band gap voltage reference and the AD8634 dual amplifier with rail-to-rail outputs, all of which are specified to operate at 175 degrees Celsius and higher.

The down-hole drilling industry is adopting a multitude of sensors to better understand the motion of the drill string below the surface to better optimize operations, prevent drill damage, and increase productivity.

Other approaches to rotational measurement, such as the use of magnetometers, are susceptible to drill vibration, are unable to precisely capture fast-changing rotational speeds and their readings can be impacted by ferrous material or metal casings used in the well.
