New Wireless Charging Receiving Coil Delivers High Efficiency for 10 W Applications
Published: Sep 17,201442 Read
Vishay Intertechnology, Inc. announced a new powdered-iron-based, WPC-compliant (Wireless Power Consortium) wireless charging receiving coil designed for 10 W applications.
New Vishay Intertechnology Wireless Charging Coils Offer Direct Replacements for EOL Devices
Vishay Intertechnology introduced new powdered iron based, WPC-compliant (Wireless Power Consortium) wireless charging c...
Vishay Intertechnology Introduces New Commercial Inductors in Compact 1212 Case Size
Vishay Intertechnology, Inc. introduced three new commercial IHLP low profile, high current inductors in the 3.3 mm by 3...

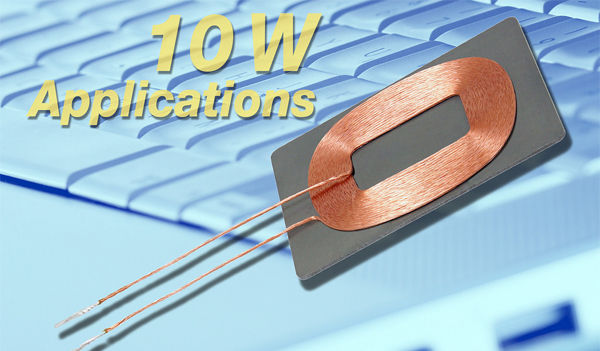

Offering a durable construction and high permeability shielding, the new Vishay Dale IWAS-4832FE-50 provides high efficiency greater than 70 % for wireless charging up to 10 W for portable electronics, including tablets, notebook computers, and handheld medical equipment.
The IWAS-4832FE-50's high-saturation powdered iron is not affected by permanent locating magnets, and the device blocks charging flux from sensitive components and batteries. As an alternative to ferrite-based solutions, which can saturate in the presence of a strong magnetic field, the IWAS-4832FE-50 offers a magnetic saturation of < 50 % at 4000 gauss.
The RoHS-compliant device features inductance of 15 µH at 200 kHz with a ± 5 % inductance tolerance, DCR of 255 mΩ at + 25 °C, and Q of 60 minimum at 200 kHz. The IWAS-4832FE-50's rated current of 2 A enables 10 W of charge at 5 V. The receiving coil features a lead length of 50 mm and tinned length of 10 mm.
