New 1 MBd and 10 MBd VOW Widebody High-Isolation, High-Speed Optocoupler Family With 10 mm Creepage

Published: Sep 19,2014

25 Read

Vishay Intertechnology, Inc. is expanding its VOW Widebody family of high-isolation optocouplers with a new series of high-speed devices capable of 1 MBd and 10 MBd data rates.

More on This

New Vishay Intertechnology Wireless Charging Coils Offer Direct Replacements for EOL Devices

Vishay Intertechnology introduced new powdered iron based, WPC-compliant (Wireless Power Consortium) wireless charging c...

Vishay Intertechnology Introduces New Commercial Inductors in Compact 1212 Case Size

Vishay Intertechnology, Inc. introduced three new commercial IHLP low profile, high current inductors in the 3.3 mm by 3...

Designed to increase reliability in high-voltage alternative energy and industrial applications, the VOW135, VOW136, VOW137, and VOW2611 provide a VIOTM of 8000 V, VIORM of 1414 V, and offer an external creepage distance of greater than 10 mm.

The Vishay Semiconductors VOW Widebody optocouplers released today consist of a GaAIAs infrared emitting diode, optically coupled with an integrated photo detector.

In addition to the increased robustness provided by their high safety isolation, the devices feature an internal Faraday shield to provide the very high input-to-output noise isolation required by high-power switching applications.

The VOW135, VOW136, VOW137, and VOW2611 are designed to isolate low- to high-voltage circuits in alternative energy systems such as solar inverters and in industrial applications such as motion and motor control and welding equipment. Eliminating the need for expensive conformal-coated solutions, the VOW Widebody devices allow designers to meet domestic and international safety agency requirements at a low cost and with a small form factor.

The VOW135 and VOW136 offer common mode transient immunity of 1000 V/μs and high- and low-level propagation delay of less than 2 µs at a data rate of 1 MBd. VOW137 and VOW2611 devices provide a data rate of 10 MBd and boost common mode transient immunity up to 40000 V/μs while keeping high- and low-level propagation delay at less than 100 ns and high pulse width distortion less than 40 ns.

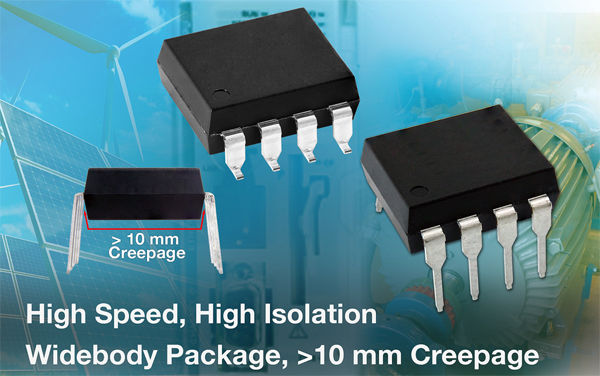

The VOW Widebody optocouplers are offered with a high creepage distance of more than 10 mm in DIP-8 400 mil Widebody through-hole and surface-mount lead-bend packages.

The devices are compliant to RoHS Directive 2011/65/EU, conform to Vishay "Green" standards, and are certified to UL, cUL, VDE, and CQC 5000 m reinforced insulation requirements.
