New Stud-Mount Version of Edgewound Power Resistor

Published: Oct 24,2014

20 Read

Vishay Intertechnology, Inc. introduced a new stud-mount version of its edgewound power resistor. Providing a convenient drop-in replacement for competing solutions, the EDGS combines a high-reliability design with continuous duty operation up to 85 A and a short-time overload of 10x rated power for five seconds.

More on This

New Vishay Intertechnology Wireless Charging Coils Offer Direct Replacements for EOL Devices

Vishay Intertechnology introduced new powdered iron based, WPC-compliant (Wireless Power Consortium) wireless charging c...

Vishay Intertechnology Introduces New Commercial Inductors in Compact 1212 Case Size

Vishay Intertechnology, Inc. introduced three new commercial IHLP low profile, high current inductors in the 3.3 mm by 3...

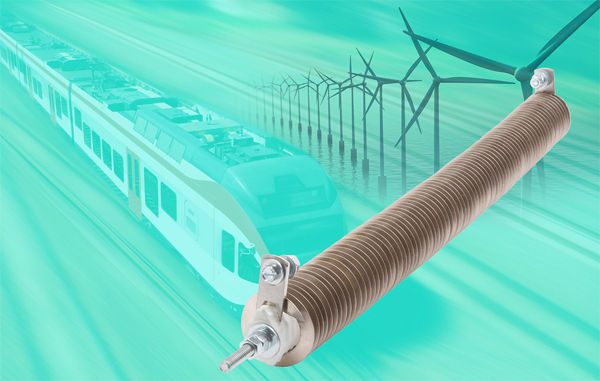

The Vishay Milwaukee EDGS (a product line of Vishay Dale Resistors) features a resistance-alloy ribbon wire that is coiled on edge and supported on specially designed porcelain insulators, which provide proper turn-to-turn spacing and insulation from threaded stud mounts. The device's open-coil construction allows for efficient heat dissipation and easily accommodates overloads and surges. The EDGS's terminals are welded to the resistive wire for a reliable electrical connection.

With current ratings from 17.2 A to 85 A and power ratings from 400 W to 1600 W, the EDGS is optimized for pre-charge, discharge, dynamic braking, load testing, and heater applications in industrial drives, locomotives, wind turbines, and harmonic filters. The edgewound, RoHS-compliant device features a wide resistance range from 0.053 Ω to 5.44 Ω, with tolerance of ± 10 %.

Customizable, the industrial power resistor released today can be mounted on brackets supplied by Vishay Milwaukee or in IP-rated enclosures. The device is also available in a universal-mounted version: the EDGU.

Samples and production quantities of the EDGS are available now, with lead times of four weeks for larger orders.
