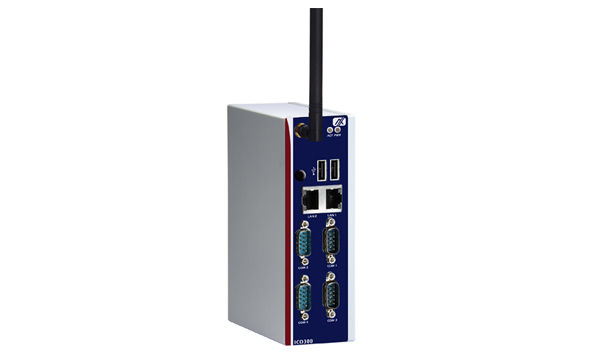

This intelligent Intel Atom-based IoT gateway solution supports complete expandability and features, including wireless support, four RS-232/422/485 ports, two isolated Gigabit Ethernet ports, two high-speed USB 2.0 ports, RTC battery function, and wide range 12-24VDC power input with terminal block. The reliable ICO300 is a perfect embedded solution for IoT, industrial and embedded applications such as power plant automation, facility monitoring systems, intelligent transportation systems and other harsh environment.

“Considering a booming market for Internet of Things, Axiomtek developed a new industrial gateway which features low power consumption, wireless connectivity for cloud, rich expansion, RTC battery and robust design. The slim-type ICO300 comes packaged in a robust IP40 housing and is designed to withstand temperatures ranging from -20°C to +70°C for use in extremely cold or hot environments. ” said Maxine, product manager of Product & Marketing Division at Axiomtek.

In addition, it has ultra-lightweight advantage and compact design for any space-limited application. The user-friendly front accessible I/O cabling design is convenient for wiring and easy maintenance. The wide range 12~48 VDC terminal block power input, and overvoltage and reverse protection can minimum the risk of data loss in the event of human errors. The industrial-grade stability and reliability are absolutely ideal for intelligent computing and communication solution in critical environments,” said Maxine, product manager of Product & Marketing Division at Axiomtek.

The application-ready machine to machine platform ICO300 supports Intel® Moon Island Gateway solution for the Internet of Things (IoT). Customers could connect their widely distributed systems via wireless network such as 3G/GPRS or WiFi. It also avails users to manage a variety of systems effortlessly with a wide range of industrial interfaces for both new and existing installation into the Internet of Things environment. It simplifies the development process and deployment of IoT gateways and achieves accelerated business transformation.

Axiomtek’s new ICO300 has passed CE, FCC and EN60950-1 testing. Moreover, its significant anti-vibration design can endure up to 2g@5~500Hz, amplitude 0.35mm. The embedded computer provides four RS-232/422/485 ports for legacy embedded and automation control systems.

All above features come in a maintenance-free design quality and an extremely compact footprint of only 48mm x 155mm x 110mm (H x W x D). Pre-installed Windows 7, Windows 7 Embedded, Windows 8, Windows 8 Embedded or Linux support package; also, the perfect ICO300 provides programmers with a friendly environment for developing application software at a lower cost.

Axiomtek focused on industrial automation, intelligent transportation and green-power solutions with many years experience. We specialize in OEM and ODM projects; and, we have experience, capability, and R&D resources to make any OEM and ODM integration a glowing success.

Features:

－ Intel Moon Island Gateway solution

－ Fanless, din-rail and rugged design

－ Built-in Intel Atom processor E3815 (1.46 GHz)

－ Supports two isolated Gigabit Ethernet ports

－ Supports four RS-232/422/485 ports

－ Supports one wireless (3G/GPRS or WiFi)

－ Supports one CompactFlash (or mSATA slot) and one 2.5” SATA SSD (or HDD)

－ Wide range 12-24VDC power input with terminal block

－ RTC battery function

－ Din-rail mount or wall mounting; super compact: 48mm x 155mm x 110mm (H x W x D)

－ Wide operating temperature range of -20°C ~ +70°C
