The tiny ASM330LXH IMU is ideal for in-dash car-navigation solutions that require accurate and reliable inertial sensors to optimize positioning and direction, even in the absence of a strong GNSS (Global Navigation Satellite System) signal. Weak or intermittent satellite signals are common in urban areas, tunnels, and parking garages, where direct visibility of the satellites may be blocked.

Multi-axis gyroscopes and accelerometers, like the 6-axis ASM330LXH, empower sophisticated Dead Reckoning software algorithms that calculate current position from a previously determined location updated by time, acceleration, and change of direction. The new device also targets on-board units for electronic road tolling and other vehicle telematics systems.

“Having built its 8” MEMS manufacturing line in 2006 and introduced the world’s first automotive-qualified 3-axis MEMS gyroscope for non-safety applications in 2012, ST is fortifying its market leadership with the introduction of this 6-axis IMU that is accurate and reliable despite its small size,” said Anton Hofmeister, STMicroelectronics Group Vice President and General Manager Custom MEMS Division.

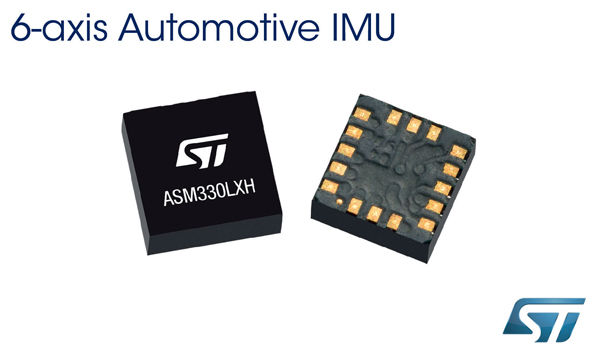

Built on the Company’s fab on its robust 8” manufacturing line using the well-proven proprietary THELMA3 micromachining process technology that enables the integration on the same silicon of both a 3-axis acceleration and 3-axis angular-rate sensor (gyroscope), the ASM330LXH IMU is mounted in a 3x3x1.1mm Land Grid Array package.

The device offers selectable full-scale ranges of 2/4/8/16g and 125/245/500/1000/2000dps with 16-bit synchronized data outputs, at 6 user-selectable Output Data Rates, for both the gyroscope and accelerometer. An SPI digital output allows the trouble-free transport of sensor data to the microcontroller, and I2C is also supported. Energy efficiency is assured via power-down, low-power, and normal power modes.

AEC-Q100 qualified for automotive non-safety applications, the ASM330LXH is a robust sensor [up to 10000g shock survivability] that operates over an extended industrial temperature range (-40°C to +85°C). Electromagnetic reliability is assured through ST’s extensive solid design and packaging expertise.

Features:

－ Analog supply voltage: 1.71 V to 3.6 V

－ Independent IOs supply (1.71 V) and supply voltage compatible

－ Power-down and sleep modes

－ 3 independent acceleration channels and 3 angular rate channels

－ ±2/±4/±8/±16 g selectable full scale

－ ±125/±245/±500/±1000/±2000 dps selectable full scale

－ SPI/I2C serial interface

－ Embedded temperature sensor

－ 2 embedded FIFOs

－ ECOPACK, RoHS and “Green” compliant

－ AEC-Q100 qualification
