Silicon Labs Expands Sub-GHz Wireless Portfolio to Support 802.15.4/4g Connectivity

Published: Nov 13,2014

27 Read

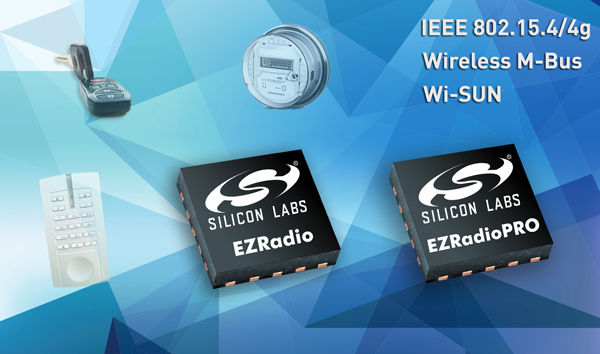

Silicon Labs introduced next-generation EZRadio and EZRadioPRO wireless ICs offering industry-leading power efficiency, wireless range and flexibility. Operating in the sub-GHz band, the new Si4x55 EZRadio and Si4x6x EZRadioPRO families support a variety of proprietary, legacy and emerging protocols including IEEE 802.15.4/4g, Wireless M-Bus and Wi-SUN.

More on This

Silicon Labs Accelerates Low-Power Cellular IoT Applications with LTE-M Solution

Silicon Labs delivers ultra-low-power, long-range wireless connectivity to battery-powered IoT devices with a new LTE-M ...

Silicon Labs Introduces USB Type-C Rechargeable Battery Packs

Silicon Labs has introduced a comprehensive reference design to simplify the development of USB Type-C rechargeable lithium ion battery packs used to power smartphones...

The EZRadio and EZRadioPRO families provide a versatile, high-performance multiprotocol wireless connectivity platform for a wide array of IoT applications including wireless sensor networks, industrial M2M communication, remote controls, security systems and smart meters.

Silicon Labs’ new EZRadio and EZRadioPRO families offer the highest levels of RF performance and single-chip integration in the sub-GHz wireless IC market. These sub-GHz wireless ICs provide best-in-class performance specifications including transmit output power (up to +20 dBm for EZRadioPRO), sensitivity (-116 dBm for EZRadio and -133 dBm for EZRadioPRO) and link budget (153 dB).

Ideally suited for battery-powered wireless applications, the EZRadio and EZRadioPRO devices provide the industry’s lowest standby current of 40 nA with memory retention, consuming up to 75 percent less sleep mode current than competing solutions. Each device includes a patent-pending signal arrival detector that reduces the average receiver current by detecting a signal faster than traditional sub-GHz receivers, effectively increasing the battery life for various applications.

Featuring a high-efficiency integrated power amplifier (PA) consuming only 18 mA at 10 dBm, these energy-friendly sub-GHz radios can operate on a single coin cell battery, and they are well suited for smart meter designs that require long-range and up to 20-year battery lifetime. Autonomous duty cycling between active and low-power modes and advanced features such as frequency hopping and antenna diversity minimize host MCU interaction and further reduce overall system power consumption.

Silicon Labs’ sub-GHz radios support a wide variety of proprietary protocols through flexible on-chip packet handler and modem technology. EZRadio devices handle most basic packet formats, while EZRadioPRO devices are designed for more complex packet formats.

The flexible architecture offloads the host microcontroller (MCU) without sacrificing RF performance. EZRadio and EZRadioPRO devices can support a protocol stack such as an 802.15.4-based mesh network or a point-to-point or star network in conjunction with a Silicon Labs 8-bit MCU or a 32-bit EFM32 Gecko MCU serving as the external host.

Si4x55 EZRadio transceivers, transmitters and receivers provide cost-effective, easy-to-use wireless connectivity solutions for basic “push-button” applications such as remote controls for set-top boxes, bidirectional key fobs and garage door openers. Configurations include simple point-to-point or star networks with standard packet formats.

Covering the 283-525 MHz and 850-960 MHz frequency bands, EZRadio devices provide excellent communication range for indoor applications, industry-leading power efficiency, superior blocking and phase noise performance. Available in the smallest package size in the sub-GHz market (3 mm x 3 mm), EZRadio devices are suitable for any space-constrained wireless design.

Si4x6x EZRadioPRO transceivers, transmitters and receivers are an excellent choice for developers requiring advanced features, higher RF performance and a wider range of protocol options. They are ideal for ultra-long-range, narrowband applications using complex, advanced packet formats and network protocols.

The devices are designed to meet stringent regulatory and standards compliance requirements including FCC part 90 Mask D, ETSI Category-I, ARIB T108, Wireless M-Bus and IEEE 802.15.4/4g options. The Si4461 EZRadioPRO transceiver recently received Wi-SUN certification from a leading sub-GHz wireless module partner in Japan, highlighting compliance with IEEE 802.15.4g.
