The Axiomtek intelligent industrial firewall platform IFW320 is built in with IPsec VPN providing site to site secure tunnel, PPTP VPN offering point to point connection for employee at home, and SSL VPN allowing easy VPN access to the headquarters simply through a web browser. This firewall router device provides system integrator and machine maker a secure way to configure and maintain devices.

The Axiomtek IFW320 is embedded with industrial protocol management including EtherCAT, Ethernet/IP, Lonworks, Profinet, Modbus, DNP that pave a way to secure fieldbus network. Central Management System (CMS) increases operation and distribution efficiency, avoids costly mistakes and significantly reduces costs in network management. CMS can also manage the installation of the distributed appliances across remote factories and robots with ease.

Additionally, we offer wide temperature range models for use in hazardous, -40°C to 75°C environments. The industrial Ethernet firewall platform IFW320 is suitable for Ethernet security application in sensitive remote control or monitoring networks, such as in oil, gas, water & wastewater, power or factory automation system,” said Mercy Peng, product manager of Product Marketing Division at Axiomtek.

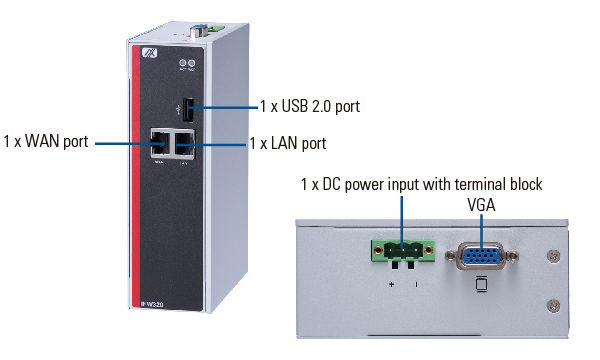

Along with IP40 extruded aluminum and heavy-duty steel closure, the din-rail mounting IFW320 is a versatile, extremely ruggedized, compact industrial firewall to provide cyber security protection for industrial, military, and critical infrastructure equipment. It supports 2GB DRAM, 2GB CompactFlash, one VGA port, one USB 2.0 port, and two Gigabit LAN ports. It can be mounted on the din rail and the wall.

Axiomtek ’s robust industrial firewall appliance IFW320 is going to be available in early June, 2015. We provide a wide array of IoT & M2M industrial systems for transportation, energy-saving & utility and automation fields.

Features:

－ Firewall/NAT/Router all-in-one

－ Security protection: Firewall, IDP, Botnet

－ Secure connection: VPN, SSL VPN, WAN connection checking

－ IPv4/IPv6 dual mode

－ Easy network setup with Network Address Translation (NAT)

－ Quick installation, USB restore

－ Centralized management

－ Wide temperature operation -40°C ~ 75°C (IFW320-T)

－ Din-rail, rugged design
