In addition to rich onboard I/Os, the CAPA840 adopts an ZIO connector on the rear-side that integrates PCIe x1, USB, LPC and SMbus expansion. With excellent thermal design, the 3.5” embedded board is able to run fanless and works smooth between -20°C to 70°C environments.

“Designed for applications such as IoT/M2M-related, industrial control, self-serve terminal, digital signage, POS and kiosk, the Axiomtek CAPA840 allows dual views through multiple display outputs of HDMI, LVDS and VGA. Additionally, the compact embedded SBC adopts a ZIO connector and has two PCI Express Mini Card slots for flexible custom configurations. It features wide voltage DC-in +12V to +24V to make power input more flexible,” said Michelle Mi, product manager of Product & Marketing Division at Axiomtek.

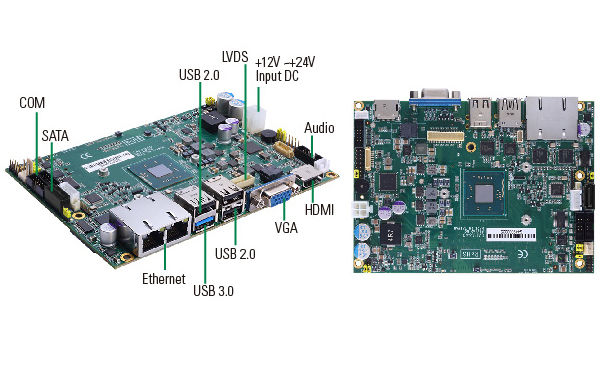

Axiomtek’s 3.5in SBC CAPA840 comes with advanced connectivity including two Gigabit Ethernets ports, one RS-232/422/485 port, one RS-232 port, four USB 2.0 ports, one USB 3.0 port, one SATA300 interface, one audio, 8-bit programmable DIO, two full-size PCI Express Mini Cards, and one mSATA as well as exclusive ZIO connector.

Axiomtek has over 20 year experience in design-in service and provide customized thermal solution, embedded software support, and modularized accessory to meet different levels of customized service. In order to quickly access up-to-date documents, Axiomtek Technical Portal (ATP), our web-based support service, allows users to download technical design guides, mechanical 2D/3D drawings, and software utilities simply through ATP web page.

Features:

－ Built-in Intel Atom processor quad core E3845 (1.91GHz) or dual core E3827 (1.75GHz)

－ 2 DDR3L SO-DIMM supports up to 8 GB memory capacity

－ 4 USB 2.0 ports, 1 USB 3.0 port, 2 COM ports

－ Dual views through multiple display outputs of HDMI, LVDS and VGA

－ Fanless operation and wide range temperature support from -20°C to 70°C

－ ZIO connector

－ +12V to +24V DC-in
