HOLTEK New HT7M2126/2136/2156/2176 PIR Modules
Published: Mar 01,20162366 Read
HOLTEK announced its new PIR module series, the HT7M21x6, specifically designed for PIR product applications. These all new PIR modules come complete with a fully integrate PIR sensor, Fresnel lens, DSP algorithms and other features.
HOLTEK New HT32F61730/741 Li-Battery Management MCUs
Holtek announced the release of two new Li-Battery management MCUs, the HT32F61730 and HT32F61741. Compared with the second generation HT32F61630 and HT32F61641 devices...
HOLTEK New HT45R6Q-2/HT45R6Q-3 Battery Charger OTP MCU
Holtek has further expanded its range of battery charger OTP MCUs with the present release of two new devices, the HT45R6Q-2 and HT45R6Q-3...

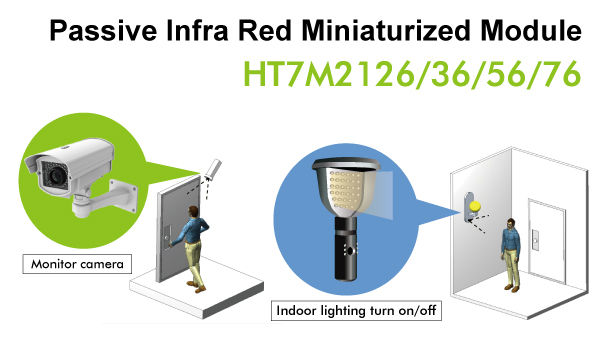

The modules have the functions of low power consumption, an I2C communication interface as well as DSP algorithms to enhance the PIR sensor reliability. Such PIR products are widely used in applications such as security systems, automatic doors, intelligent lighting, garden lights, guest reception monitors, etc.
The HT7M21x6 series have an operating voltage range of 2.7V~5.5V and also contain a low current standby detection function and support both I2C or I/O interfaces. Other functions include an integrated temperature sensor, adjustable sensing sensitivity, fast warm-up function, etc.
The HT7M21x6 series include the HT7M2126, HT7M2136, HT7M2156 and HT7M2176 devices. Users can select the appropriate device according to their different horizontal and vertical viewing angles and different detection distance requirements for their specific applications.
This highly functionally integrated module series, in addition to allowing users to develop rapidly their PIR products, also provide a means for more flexible production and inventory management during the production process.
