Low Power Wireless Charger for Hearing Aids

Published: Aug 23,2016

280 Read

The LTC4123 is a low power wireless receiver and a constant-current/constant-voltage linear charger for NiMH batteries. An external programming resistor sets the charge current up to 25mA. The temperature compensated charge voltage feature protects the NiMH battery and prevents overcharging.

More on This

40VIN, 2A Silent Switcher µModule Regulator in 6.25mm x 4mm BGA Package

Analog Devices, Inc., which recently acquired Linear Technology Corporation, announces the LTM8063, a 40VIN, 2A µModule step-down regulator in a tiny 6...

Dual Input Prioritizer Provides Low Quiescent Current Backup Supply Switchover Solution

Analog Devices, Inc., which recently acquired Linear Technology Corporation, announces the LTC4418, a dual input power prioritizer for 2...

Wireless charging with the LTC4123 allows products to be charged while sealed within enclosures and eliminates bulky connectors in space constrained environments. The LTC4123 also makes it possible to charge NiMH batteries used in moving or rotating equipment.

The LTC4123 prevents charging of Zinc-Air batteries as well as batteries inserted with reverse polarity. The LTC4123 pauses charging if its temperature is too hot or too cold. An internal timer provides time-based charging termination.

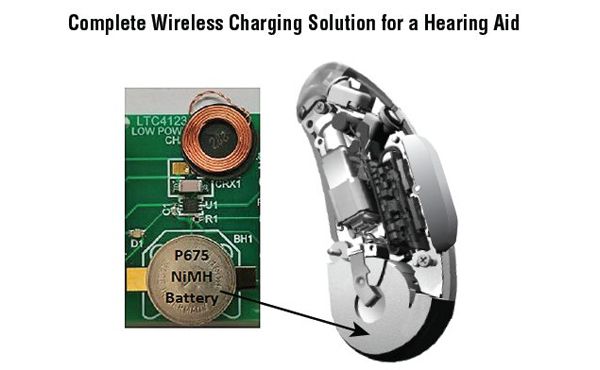

The 2mm × 2mm DFN package and low external component count make the LTC4123 well-suited for hearing aid applications or other low power portable devices where small solution size is mandatory.

Features:

• Complete Low Power Wireless NiMH Charger

• Low Minimum Input Voltage: 2.2V

• Small Total Solution Volume

• 1.5V, 25mA Linear Single-Cell NiMH Charger

• Temperature Compensated Charge Voltage

• Integrated Rectifier with Overvoltage Limit

• Zinc-Air Battery Detection

• Reverse Polarity Protection

• Thermally Enhanced 6-Lead (2mm × 2mm) DFN package
