Isolated Power Supply Control ICs for Industrial Inverters

Published: Aug 25,2016

360 Read

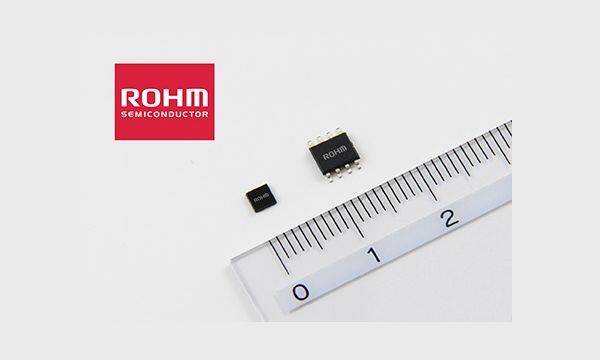

ROHM has recently announced the availability of isolated flyback-type DC/DC converter control ICs for inverters in high power industrial equipment such as FA/solar inverters and power storage systems.

More on This

ROHM’s SiCrystal and STMicroelectronics Announce Multi-Year SiC Wafer Supply Agreement

ROHM and STMicroelectronics today announced it signed a multi-year silicon carbide (SiC) wafers supply agreement with SiCrystal...

New High-Speed Optical Heart Rate Sensor

ROHM has recently announced the availability of an optical heart rate sensor for smart bands and watches capable of measuring blood pressure...

Isolation is almost always built into electronic equipment to provide protection against shock and damage. High voltage, high power industrial applications (including power storage systems and solar inverters which are seeing increased adoption) are no exception, requiring even more stringent reliability demands due to the harsher temperature conditions and the need for continuous, long-term operation.

Conventional solutions utilize a optocoupler and other components for flyback-type isolated power supply control.

However, this presents challenges associated with current consumption and reliability (including circuit scale and product life). In contrast, the BD7F series reduces the number of external parts by nearly half by eliminating the need for a optocoupler, providing greater energy savings, reliability, and miniaturization.

In addition, a newly developed adaptive ON time control method is used to improve load response time (a drawback of conventional isolated power supply ICs), while voltage fluctuation is limited to under 200mV, contributing to even higher reliability.
