The rapid growth of IoT capabilities for industrial applications comes with legitimate concerns about data integrity, due to deliberate corruption of critical sensor data anywhere between a source and the cloud.

The reference design's sophisticated architecture and components, Arduino-compatible hardware interface, and ARM mbed libraries support simplifies development of secure, uncorrupted, and authenticated sensor-to-web data. It is ideal for analog sensor node and data authentication in factory automation and industrial processing applications.

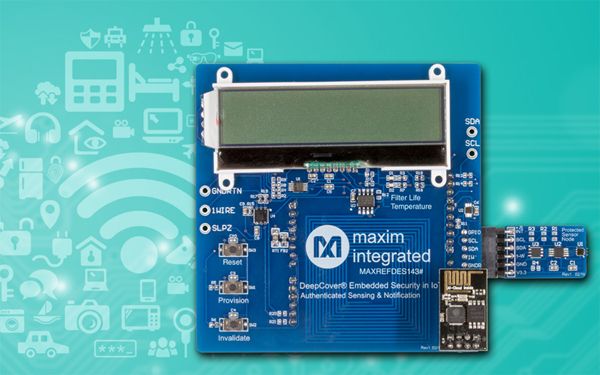

The reference design's two-stage hierarchical architecture consists of a shield that communicates to a web server, and a protected sensor node for data acquisition and authentication. The shield includes a Wi-Fi module; a DS2465 secure coprocessor for offloading SHA-256 cryptographic computation; 1-Wire and I2C interfaces; user-interface LCD, LEDs, and pushbuttons; along with alarm and logging functions. The sensor node contains a DS28E15 secure authenticator, DS7505 temperature sensor, and MAX44009 light sensor.
