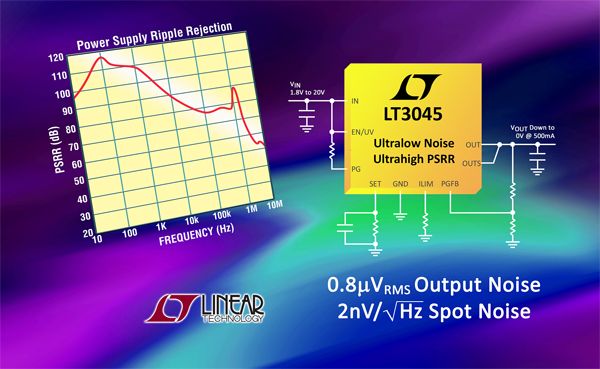

The LT3045’s unique design features ultralow spot noise of only 2nV/√Hz at 10kHz and 0.8μVRMS integrated output noise across a wide 10Hz to 100kHz bandwidth. Low and high frequency PSRR performance are exceptional. Low frequency PSRR exceeds 90dB out to 10kHz and high frequency PSRR exceeds 70dB out to 2.5MHz, thereby quieting noisy or high ripple input supplies.

The LT3045 utilizes Linear’s proprietary LDO architecture – a precision current source reference followed by a high performance unity-gain buffer, resulting in virtually constant bandwidth, noise, PSRR and load regulation performance, independent of output voltage. In addition, this architecture permits paralleling of multiple LT3045s to further decrease noise, increase output current and spread heat on a printed circuit board.

The LT3045 delivers up to 500mA output current with a 260mV dropout voltage at full load, across a wide 1.8V to 20V input voltage range. Output voltage range is 0V to 15V and output voltage tolerance is highly accurate at ±2% over line, load and temperature.

The device’s wide input and output voltage ranges, high bandwidth, high PSRR and ultralow noise performance are ideal for powering noise-sensitive applications such as PLLs, VCOs, mixers, LNAs, very low noise instrumentation, high speed/high precision data converters, medical applications such as imaging and diagnostics, precision power supplies and as a post-regulator for switching supplies.

The LT3045 operates with a small, low cost, 10μF ceramic output capacitor, optimizing stability and transient response. A single resistor programs the external precision current limit (±10% over temperature). A single SET pin capacitor lowers output noise and provides reference soft-start functionality, preventing output voltage overshoot at turn-on.

Moreover, the device’s internal protection circuitry includes reverse-battery protection, reverse-current protection, internal current limit with foldback and thermal limit with hysteresis. Other features include fast start-up capability (useful if a large value SET pin capacitor is used) and a power good flag with programmable threshold to indicate output voltage regulation.
