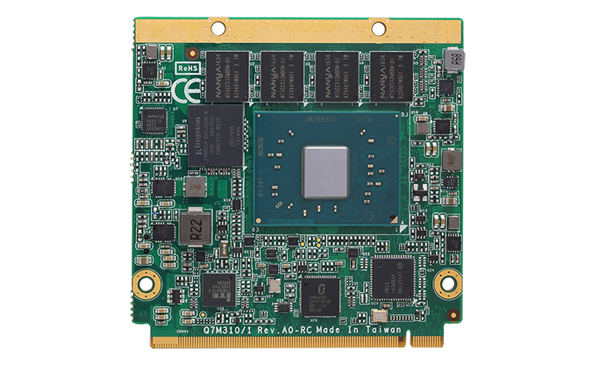

Axiomtek Announces Qseven Module with Intel Apollo Lake Processor – Q7M311

Published: Jun 08,2017

611 Read

Axiomtek announced the release of the Q7M311, a brand new Qseven module with Intel Apollo Lake processor, dual display interfaces, 32GB eMMC memory, and wide operating temperature supported.

More on This

Axiomtek Announces IFB125, a Compact, Rugged RISC-based Industrial IoT Gateway

Axiomtek announced the launch of its robust RISC-based DIN-rail industrial IoT gateway, IFB125, which is powered by the low-power Freescale i...

Axiomtek’s MPC102-845 – EN 60601-1 Certified 10.4” Medical-grade Touch Panel PC

Axiomtek announced its newest EN 60601-1 certified 10.4” medical-grade panel PC, the MPC102-845. This compact medical ...

Axiomtek’s Q7M311 has adopted the 14nm Intel Pentium N4200 and Celeron N3350 quad-core/dual-core processors (codename: Apollo Lake). The extremely small embedded module supports 4GB (or optionally up to 8GB) DDR3L memory onboard and 32GB eMMC flash memory (optional). With a seismic design and for industrial-grade temperatures, both the CPU and the DDR3L RAM are soldered to deliver reliable and excellent computing performance. With rich features embedded in all the components built in a small form factor, the industrial-grade computer-on-module is aimed for industrial IoT applications, including industrial control, medical imaging, digital signage, gaming machines, military, and networking.

“The Q7M311 - Axiomtek’s new Qseven module in a small form of 70 mm x 70 mm - was built to withstand a wide operating temperature range from -20°C to +70°C (i.e. -4°F to +158°F) for portable and rugged industrial applications. The extreme compact embedded SBC supports smart battery function with its onboard system memory and eMMC flash memory. Additionally, incorporating Intel Gen 9 graphics, the newest Qseven module is delivering excellent graphics performance while supporting DX12.0, OCL 2.0, and OGL 4.3. Moreover, dual-display is supported with resolution up to 4K (3840 x 2160 @ 30 Hz) through two DDI ports: HDMI, DVI (/VGA optionally), and LVDS as well as an optional embedded DisplayPort. The capability of powerful media processing has made the Q7M311 an outstanding multimedia solution,” said Seamus Su, a product manager of Product PM Division at Axiomtek.

This Intel Apollo Lake-based computer-on-module is equipped with advanced connectivity, including four PCIe x1 ports, two USB 2.0 ports, four USB 3.0 ports, one Gigabit Ethernet (built-in Intel Ethernet controller i211AT), two SATA-600 interfaces, and eight inputs/outputs of general purpose for peripheral devices and data transfer. Also, the LPC bus is available for easy connection of legacy I/O interfaces. This powerful Qseven embedded board runs well with Windows10 and Linux operating system and supports Axiomtek AXView 2.0 intelligent remote management software.
