DELO's New Acrylate, a True Allrounder for Sealbonding

Published: Jun 21,2017

1355 Read

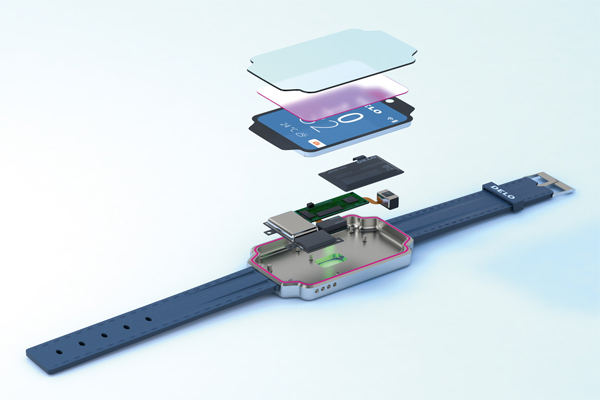

DELO Industrial Adhesives has developed a light-curing acrylate with excellent peel resistance for seal-bonding. DELO PHOTOBOND GB4033 has features that make it suitable for universal use, for example, in electronic applications.

More on This

DELO Introduces Compact LED Curing Lamp DELOLUX 503

DELO has developed a particularly space-saving UV lamp for adhesive curing. The powerful DELOLUX 503 is designed for ind...

DELO Announces Its New Generation of 365 nm Curing Lamps

DELO Industrial Adhesives has extended its device portfolio by another two curing lamps. A new generation of area lamps with a wavelength of 365 nm is now available...

Designed for service temperatures ranging from -40 °C to +120 °C, it is particularly suited for material joints that require adhesives not only to be strong but also flexible and tight. The product provides very good sealing properties against water, humidity, and dust, as is often required in the world of consumer electronics.

In addition, an elongation at tear of 400 % allows it to equalize tensions to a large extent. This elasticity contributes to the good peel resistance on glass and plastic. Its average peel strength on PEEK, PC, or PET is 14 N/cm compared to 1-3 N/cm for standard acrylates.

DELO PHOTOBOND GB4033 is fluorescent in blue, which is very useful for controlling precise application of the adhesive and for process control. The adhesive cures under both UV and visible light. This large wavelength coverage makes it possible to use transparent materials with low transmittance such as PC. The minimum curing time to reach final strength is four seconds at typical intensities of 200 mW/cm², enabling high-volume applications at short cycle times.

The low-viscous, one-component adhesive is solvent-free and can be stored at room temperature.
