imec today announced it has realized bifacial n-PERT solar cells using an industrially-compatible process with a record-setting front-side conversion efficiency of 22...
Today, at the 2017 International Solid-State Circuits Conference in San Francisco, imec and Holst Centre and Cartamundi demonstrate a world first thin-film tag on plastic...
The modules consist of 60 front side laser ablated and Ni-Cu-Ag plated p-type Cz-Si cells. The plating was performed with Meco’s Direct Plating Line, an industrial plating tool, followed by annealing in an inline belt furnace. Cells were interconnected using standard soldering and lamination processes.

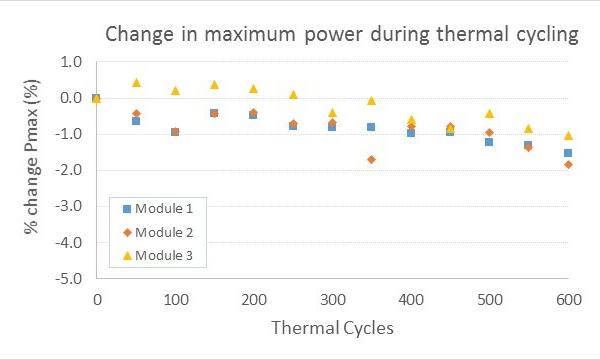

Two of the five modules were subjected to 600 thermal cycles (-40°C to +85°C) and they passed this three times IEC61215 specification with overall power losses of only 1.5 percent and 1.8 percent, one of the modules was subjected to a 1000h damp-heat test (85°C, 85 percent RH) with no power loss (0.1 percent gain), and two of the five modules were submitted to a serial testing of 15 kWh UV-conditioning followed by 50 cycles temperature cycling followed by 10 cycles humidity-freeze-test, after which they showed overall power losses of only 0.5 and 3.0 percent.
These test results prove the long-term reliability potential of imec’s and Besi’s Cu-plated cells and modules, as they have now outperformed the industrial standard for reliability, which requires less than 5.0 percent loss relative to initial power.
“We are very pleased with this result”, stated Richard Russell, principal engineer at imec. “It demonstrates our industrial leading knowledge on how to make reliable Ni/Cu/Ag plated solar cells and modules with a low cost industrial manufacturing process.”
“After the excellent result of the 600 thermal cycle test earlier this year on one module, we are delighted to confirm that these results can be repeated on a larger set of 5 modules” stated Martijn Zwegers, product manager solar at Besi.
“Furthermore it indicates that modules with Cu plated cells lead to industry standard reliability, paving the way for Ni/Cu/Ag plated cells as a viable, low-cost alternative to front side screen printing of Ag pastes.”
CTIMES loves to interact with the global technology related companies and individuals, you can deliver your products information or share industrial intelligence. Please email us to firstname.lastname@example.org
