CPT and imec to Demonstrate 1250 ppi, FMM-free OLED Displays with Photolithography at Touch Taiwan

Published: Sep 20,2017

TAIPEI, Taiwan – Chunghwa Picture Tubes Ltd. (CPT) together with the European research institute imec in the framework of the Holst Centre collaboration, showcase today an ultra-high resolution display realized by photolithography patterning of organic light emitting diode (OLED) arrays. The results pave the way to cost-effective manufacturing of fine, side-by-side pixels in OLEDs, and will be presented at the annual International Smart Display and Touch Panel Exhibition, Touch Taiwan, in Taipei, Taiwan ROC, Sep 20 – Sep 22.

More on This

Imec Creates Innovative Neural Probe Demonstrator with Unprecedented Electrode Density

Imec announced at its Imec Technology Forum (ITF) Health event, that is has designed and fabricated a demonstrator of a ...

Taiwan’s CPT Successful Lights QLED Display Technology

TAIPEI, Taiwan - AMOLED self-illuminating display panels have been pushed to the limit of thinness and have become the top choice for high-end display panels on mobile devices...

CPT and imec have verified that a novel photolithography process can allow for ultrafine OLED patterns. The proposed technique does not require using fine-metal masks to structure thermally evaporated OLED stacks (“FMM-free”). One of the main challenges when applying standard photolithography is the fragility of the organic materials for the photolithography chemicals.

To circumvent this issue, imec and CPT have used an i-line, chemically amplified photoresist system in a process flow dedicated to OLED stacks. Apart from ultra-high resolution, other benefits of photolithography include high aperture ratio, large substrate size compatibility and good yield control.

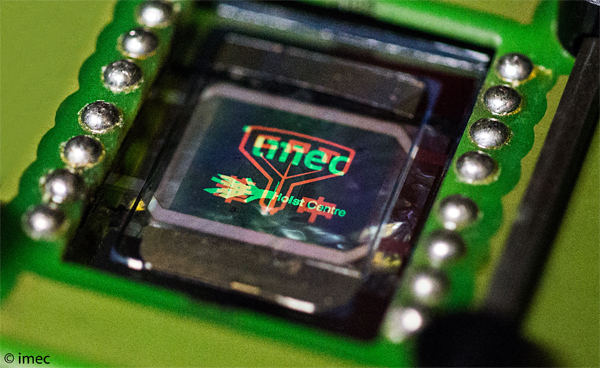

The proof-of-concept is a passive display with 1400x1400 pixels (1.96 megapixel) of side-by-side, orange and green OLEDs. The sub-pixel pitch of 20 μm results in the equivalent resolution of 1250 ppi. Uniform electroluminescence is demonstrated with the possibility to light up each color separately. Moreover, preliminary lifetime investigation shows operation of each color after patterning for a few hundred hours at more than 50% of the original brightness.

“Our goal is to identify and explore technology bottlenecks in the extremely competitive and fast-paced display industry. With research activities spanning from material and device science, through design, fabrication and integration all the way to tech transfer, we make use of our semiconductor and thin-film background,” stated Paul Heremans, program director of thin-film electronics at Holst Centre/imec.

“The collaboration with CPT enables us to improve the manufacturability readiness level of the OLED photolithography patterning method. This will enable production of ultra-high resolution OLED displays for next-generation user interfaces. We are very happy to have the possibility to explore this exciting technology route with our innovative partners.”
