BREAKS THROUGH THE DIGITAL POWER BARRIER
Published: Mar 31,201427 Read

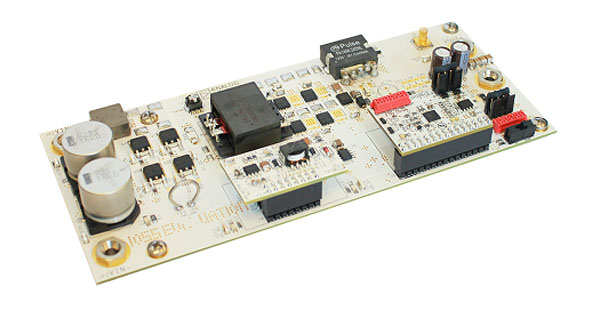

Analog Devices introduced the ADP1055 advanced digital power controller with PMBus interface for high-density, isolated DC-to-DC power supply system applications. The ADP1055 uses Analog Devices’ high-resolution, high-speed A/D converter sensing technology combined with proprietary non-linear transfer functionality to achieve high bandwidth performance and transient response equivalent to traditional analog switching controllers.
Analog’s $20bn Maxim Deal Another Example of Semiconductor Sector Shakeout, says GlobalData
The global semiconductor industry has too much capacity, too many players and has had declining revenues since the end of 2018...
40VIN, 2A Silent Switcher µModule Regulator in 6.25mm x 4mm BGA Package
Analog Devices, Inc., which recently acquired Linear Technology Corporation, announces the LTM8063, a 40VIN, 2A µModule step-down regulator in a tiny 6...
The ADP1055 is a versatile digital controller with six PWM (pulse-width modulation) logic outputs that can be programmed using an easy-to-use graphic user interface via the PMBus interface. The device enables high-energy-efficiency topologies including full bridge with precision drive timing and control of secondary synchronous rectifiers.
The controller’s GIPO (general-purpose I/O) can be configured for active clamp secondary energy efficient snubbing. Energy efficiency is further optimized using adaptive dead-time compensation to improve the efficiency over the load range. Programmable light-load-mode operation combined with low device power consumption (<150mW) reduces system low-power standby losses.
The ADP1055 provides accurate analog and digital fault signaling via the PMBus and configurable GPIO. The device also records first instance of fault and provides ‘black box’ fault history recording capability—ideal for analyzing system failure mechanisms and reliability.
The ADP1055 digital power controller’s GUI (graphic user interface) enables customers to design and store settings in the high-reliability, internal EEPROM memory. The digital power controller is available in a 5-mm x 5-mm LFCSP package—an optimal size for high-density, high-frequency, compact, isolated DC-to-DC power modules or embedded designs for networking, communications and industrial applications operating from 100 W and higher.
The ADP1055 digital power controller’s GUI (graphic user interface) enables customers to design and store settings in the high-reliability, internal EEPROM memory. The digital power controller is available in a 5-mm x 5-mm LFCSP package—an optimal size for high-density, high-frequency, compact, isolated DC-to-DC power modules or embedded designs for networking, communications and industrial applications operating from 100 W and higher.
Features:
－ −40°C to +125°C operation with EEPROM data retention of 15 years at 125°C
－ PMBus Revision 1.2 compliant
－ 32-bit password protection with command masking
－ 64 address selections (16 base addresses, expandable to 64)
－ 6 PWM control signals, 625 ps resolution
－ Duty cycle double update rate
－ Digital control loop (PID + additional pole or zero configurability)
－ Programmable loop filters (CCM, DCM, low/normal temperature)
