Generate Four Analog Outputs with 33% Fewer Components
Published: May 13,20141547 Read

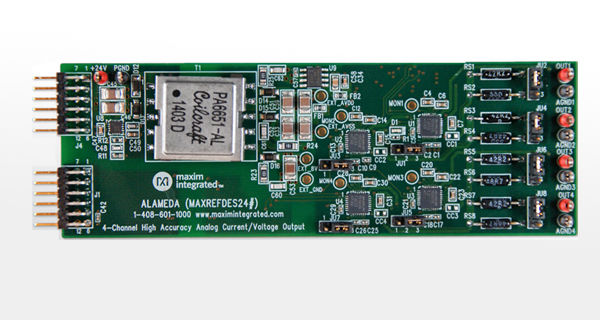

Designers may now add a high-accuracy, 4-channel analog output to their industrial automation designs with 33% fewer components than competitive designs. Simply use the Alameda (MAXREFDES24#) subsystem reference design, now available for sale, from Maxim Integrated Products, Inc.
Analog’s $20bn Maxim Deal Another Example of Semiconductor Sector Shakeout, says GlobalData
The global semiconductor industry has too much capacity, too many players and has had declining revenues since the end of 2018...
Maxim Announces Industry's First Remote Tuner Solution with Single Hardware Platform
Using the remote tuner solution from Maxim Integrated Products, Inc., designers can significantly simplify the head unit design of a vehicle and reduce cables...
Industrial programmable logic controllers (PLCs) need multiple, flexible, high accuracy analog outputs. The Alameda subsystem combines four high-accuracy (< ±0.1%) outputs with a high-efficiency, low-noise power supply controller on a single board.
Alameda offers extreme flexibility—its outputs are configurable to ±10V, ±20mA, 0 to 10V, or 4–20mA for current and voltage signaling applications. Automatic error reporting for detecting open and short circuits, brown-outs, and overtemperature conditions make this subsystem ideal for demanding, precision industrial control and automation applications.
Features:
－ Programmable High-Accuracy Current/Voltage Output
－ Current Output Drives Up to 1kΩ
－ Voltage Output Drives Loads Down to 1kΩ
－ Extensive Error Reporting
－ Isolated Power and Data
－ Device Drivers
－ Example C Source Code
－ Pmod-Compatible Form Factor
