Triac Dimmable LED Lamp Driver Increases Performance and Cost Savings

Published: Nov 28,2014

18 Read

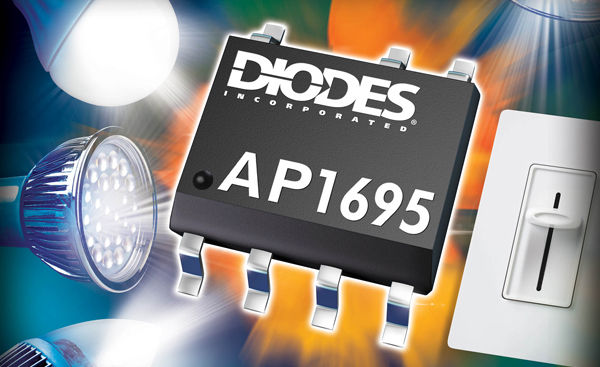

Diodes Incorporated introduced the AP1695. This LED lamp driver optimizes the design of sub 12W triac dimmer-compatible LED lamps by featuring a dimming range of 1 to 100% and up to a 30% reduction in bill of materials (BOM) cost.

More on This

Diodes Introduces World’s First Power Switch to Support USB Type-C

The DPS1133 single-channel power switch introduced by Diodes Incorporated is the world’s first high-voltage power swit...

Triac-Dimmable LED Controller/Driver Design Platform from Diodes Drives LED Lamps up to 25W

Diodes Incorporated introduced the AL1692. This LED controller/driver is a platform-based design solution for triac-dimmable LED lamps...

For 120V and 230V mains-dimmable retrofit LED lamps such as the common 5W GU10 and 8W energy saver bulbs, the high-performance AP1695 uses a patented constant on-time control technique to enable deep triac dimming down to 1% and an increase in lamp/triac compatibility. Its dimming curve complies with the NEMA SSL6 standard and the driver is fully compliant with the requirements of the IEC6100-3-2 harmonic standard.

The AP1695 is a single-stage driver integrating a 500V high-voltage MOSFET

into the space-saving SO-7 package. This device employs PFM technology to tightly regulate output current up to a 230mA (max), while maintaining a power factor higher than 0.9 and a THD rating less than 30%. Its boundary-conduction mode ensures higher efficiency and enhanced EMI performance.

By operating on the primary side, the device removes the need for optocouplers, secondary-side control and loop-compensation circuitry without compromising application stability. The AL1695 also has the following integrated protection features: over-voltage, short-circuit and over-temperature protection.
