The LTM8055 operates from input voltages ranging from 5V to 36V, delivering a load current up to 8A. The LTM8056 has a higher input voltage, up to 60V with 4A load current capability. The compact solution provided by these devices free PCB board space in systems such as battery operated devices, industrial control, avionics and solar-powered equipment.

For battery charging or precision load current adjustment, both devices enable input and output average current limit setting. Moreover, input and output current can be monitored by measuring voltage on a signal pin. Switching frequency is adjustable from 100kHz to 800kHz, while each device can be synchronized to an external clock frequency from 200kHz to 700kHz. With one resistor, the output voltage can be adjusted from 1.2V to 36V (LTM8055) and 1.2V to 48V (LTM8056).

The LTM8055 and LTM8056 are operational for -40°C to 125°C and -55°C to 125°C, 1000-piece pricing starts at $22.00 each for both products.

Features:

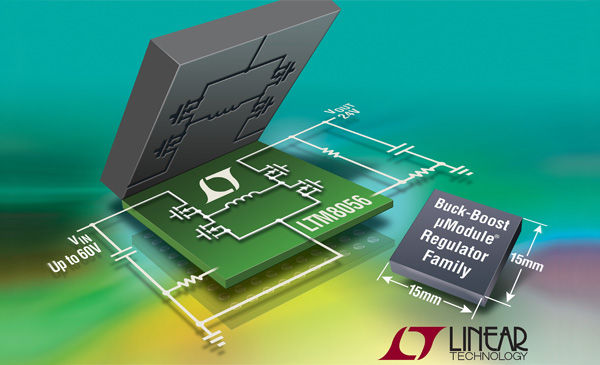

－ Complete Buck-Boost µModule Regulators

－ LTM8055: 5V to 36V Input, 1.2V to 36V Output, 8A

－ LTM8056: 5V to 60V Input, 1.2V to 60V Output, 4A

－ 15mm x 15mm x 4.92 BGA Package

－ Input & Output Current Limit Set & Monitor
