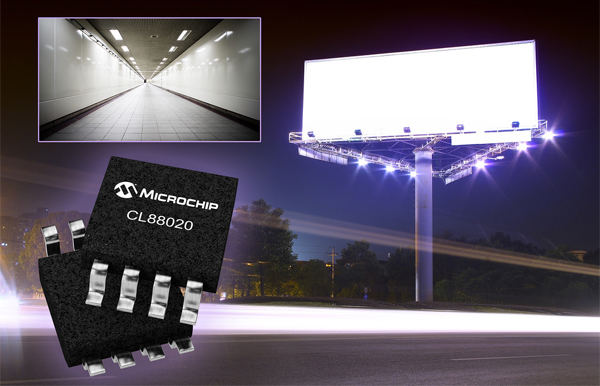

CL88020, a Next-Generation Device Designed for Offline Lighting

Published: Jul 10,2017

799 Read

A next-generation sequential linear LED driver for offline lighting applications is now available from Microchip Technology. The CL88020, an extension of Microchip’s popular CL88XX family, is designed to drive a long string of low-cost LEDs directly from the 120 VAC line input.

More on This

Microchip’s New CryptoAuthentication Device and Security Design Partner Program

Microchip Technology has created the ATECC608A CryptoAuthentication device, a secure element that allows developers to add hardware-based security to their designs...

USB Smart Hub ICs Enable Smartphone-Connected Automotive Infotainment

Microchip Technology provides unrivaled options with its five new USB 2.0 smart hub ICs. These devices, available in a variety of architectures...

The product allows customers to create reliable, cost-effective and compact LED lighting applications by having High Power Factor (PF) without the need for switch-mode power conversion which is typically required for LED lighting design.

“The transition from traditional lighting to LED is here and moving at a fast pace,” said Keith Pazul, director of marketing for Microchip’s Analog, Power and Interface Division. “Microchip has a rich and diverse LED lighting portfolio, and customers are continually seeking better electronic solutions such as those found in this new device.”

The CL88020 was designed to minimize driver circuit component count to allow for a very small and efficient design. The simple design allows for a single-layered Printed Circuit Board (PCB) design. Unlike the conventional AC-DC switch mode power supply, the basic driver circuit consists of the CL88020 IC, two small ceramic capacitors and a bridge rectifier only.

High-voltage capacitors, transformer or inductors, electromagnetic interference (EMI) filters or Power Factor Correction (PFC) circuitry are not required. This allows for a smaller solution size and a lower overall bill of material (BOM) cost as compared to traditional LED solutions.
