Following Samsung’s introduction of the world-first 3D TSV DDR4 DRAM (64GB) in 2014, the company’s new TSV registered dual inline memory module (RDIMM) marks another breakthrough that opens the door for ultra-high capacity memory at the enterprise level.

Samsung’s new TSV DRAM module boasts the largest capacity and the highest energy efficiency of any DRAM modules today, while operating at high speed and demonstrating excellent reliability.

“We are pleased that volume production of our high speed, low-power 128GB TSV DRAM module will enable our global IT customers and partners to launch a new generation of enterprise solutions with dramatically improved efficiency and scalability for their investment,” said Joo Sun Choi, executive vice president, Memory Sales and Marketing, Samsung Electronics.

“We will continue to expand our technical cooperation with global leaders in servers, consumer electronics and emerging markets, where consumers can benefit from innovative technology that enhances their productivity and the overall user experience.”

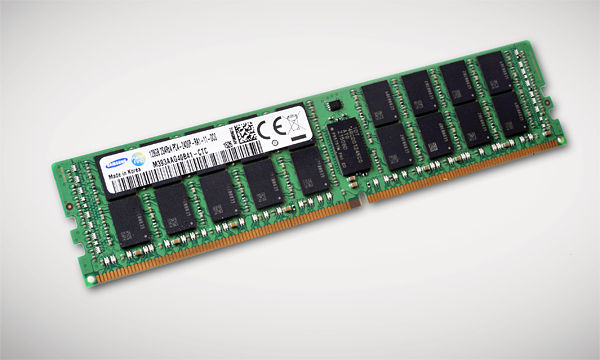

The 128GB TSV DDR4 RDIMM is comprised of a total of 144 DDR4 chips, arranged into 36 4GB DRAM packages, each containing four 20-nanometer (nm)-based 8-gigabit (Gb) chips assembled with cutting-edge TSV packaging technology.

Conventional chip packages interconnect die stacks using wire bonding, whereas in TSV packages, the chip dies are ground down to a few dozen micrometers, pierced with hundreds of fine holes and vertically connected by electrodes passing through the holes, allowing for a significant boost in signal transmission.

In addition to capitalizing on the industry’s highest capacity and TSV’s advanced circuitry, Samsung’s 128GB TSV DDR4 module has a special design through which the master chip of each 4GB package embeds the data buffer function to optimize module performance and power consumption.

As a result, Samsung’s advanced 128GB TSV DDR4 RDIMM provides a low-power solution for next-generation servers with speeds at up to 2,400 megabits per second (Mbps), achieving nearly twice the performance, while cutting power usage by 50 percent, compared to using the previous highest capacity DRAM modules ─ 64GB LRDIMMs, whose four-chip package stacks are hampered by power and speed limitations caused by their use of conventional wire bonding.
