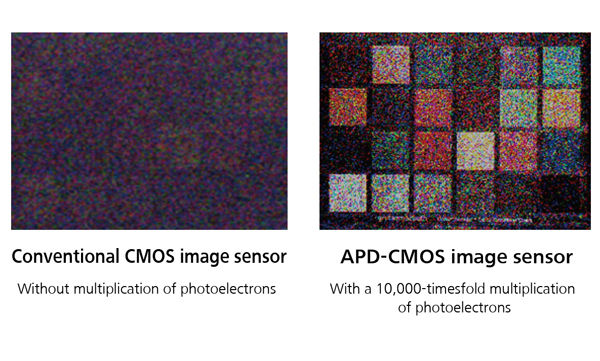

Panasonic pointed that the new sensor allows users to take sharp color images even under starlight (illuminance of 0.01 lux) or in other similarly dark places.

This new image sensor allows for highly sensitive imaging through the multiplication of photoelectrons, realizing high-gradation color imaging without the need to increase the exposure time even in dark places.

In addition, the multiplication of photoelectrons can be controlled instantly by changing the voltage applied to the APDs depending on the illuminance at the time of imaging, allowing users to take images at various illuminances from bright places to dark places.

Its expected applications include surveillance cameras that require color imaging with a wide dynamic range and industrial cameras that require ultra-highly sensitive imaging.

With conventional image sensors, photoelectrons that are photoelectric-converted during imaging in dark places may fall below the noise level, thereby limiting the imaging environment to no less than moonlight (illuminance of 0.1 lux) or so. This is why imaging under illumination of a near-infrared light source and imaging using photo multipliers have been carried out.

However, near-infrared light sources have the drawback of the inability of color imaging, whereas photo multipliers have the drawback of forcing cameras to be upsized due to the necessity of a large-capacity power supply.

Panasonic also stressed on this development has been realized on the basis of the following technologies:

APD picture element design technology in which avalanche photodiodes and charge storages are incorporated in the photoelectric convertor for not only multiplying but also accumulating photoelectrons that contain generated color information

Variable sensitivity technology in which multiplication is controlled in a thousandth of a second by controlling the voltage applied to the APDs, realizing 30-fps video imaging that can follow the changes in illuminance
