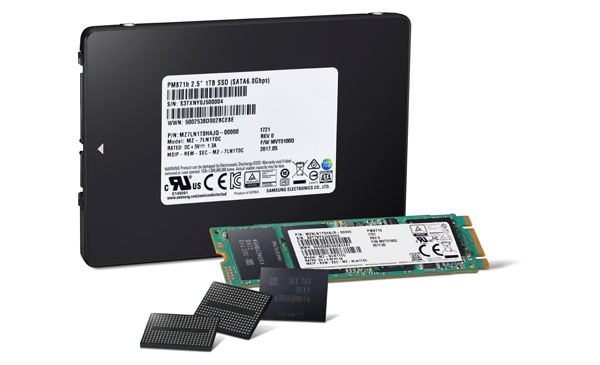

Since Samsung began producing the industry’s first SSDs based on 64-layer 256Gb V-NAND chips in January for key IT customers, it has been working on a wide range of new V-NAND-based mobile and consumer storage solutions. These include embedded UFS memory, branded SSDs and external memory cards, which the company plans to introduce later this year.

To solidify its competitive edge in the memory market, Samsung intends for its volume production of the 64-layer V-NAND chip, which is widely referred to as 4th generation V-NAND, to cover more than 50 percent of its monthly NAND flash production by year end.

“Following a long commitment to innovative technology, we will continuously push the limits of generations of industry-first V-NAND production, in moving the industry closer to the advent of the terabit V-NAND era,” said Kye Hyun Kyung, Executive Vice President of the Flash Product and Technology team, Memory Business at Samsung Electronics. “We will keep developing next-generation V-NAND products in sync with the global IT industry so that we can contribute to the timeliest launches of new systems and services, in bringing a higher level of satisfaction to consumers.”

The Samsung 64-layer 3-bit 256Gb V-NAND features a data transfer speed of 1Gbps (gigabit per second), which is the fastest among currently available NAND flash memory. Also, the V-NAND has the industry’s shortest page program time (tPROG) of 500 microseconds (㎲) among NAND flash memory, which is about four times faster than that of a typical 10-nanometer (nm) class, planar NAND flash memory and approximately 1.5 times faster than that of Samsung’s fastest 48-layer 3-bit 256Gb V-NAND flash. With today’s ample supply of leading-edge V-NAND products, Samsung expects that the industry will now focus more on the high performance and reliability of memory storage, rather than immerse itself in a chip scaling race.

The new 64-layer 256Gb V-NAND provides more than a 30 percent productivity gain, compared to the 48-layer 256Gb V-NAND that preceded it. In addition, the 64-layer V-NAND has a 2.5V input voltage for its circuits, which leads to approximately 30 percent greater energy efficiency than the 3.3 volts that 48-layer V-NAND used. Also, the reliability of the new V-NAND cell increased by about 20 percent compared to its predecessor.

Samsung enabled these improvements by tackling a diversity of challenges that appear in the advanced V-NAND manufacturing process. Chief among them were realizing multi-billion channel holes that penetrate several dozen layers of cell-arrays, and minimizing the loss of electrons from about 85.3 billion cells.

As the layers of cell arrays increase, the level of technological difficulty also increases, especially in making the channel holes homogeneous in their shape from the top to the bottom layer, and in properly dispersing the weight of all the layers to improve the stability of the channel holes.

Another challenge that Samsung overcame was to realize 64 layers of cell arrays based on 3D CTF (charge trap flash) structure and uniformly cover the inner side of each channel hole with an atomically thin, non-conductive substance. This led to the creation of smaller cells with improved performance and reliability.
