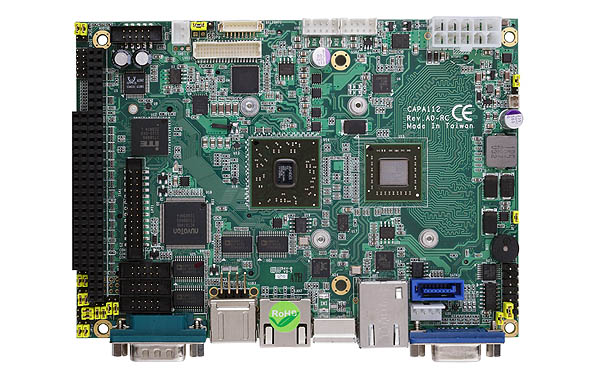

The embedded board is powered by either an AMD Embedded G-Series APU dual core T40E at 1.0 GHz or single core T16R at 615 MHz, paired with the A55E FCH. One DDR3-1066 SO-DIMM on board implements up to 4GB of system memory. Integrated with Radeon HD 6250 graphics controller with DirectX 11 support, the super compact 3.5-inch embedded platform delivers unprecedented high definition visual experience.

Moreover, it offers -40°C to +70°C (-40°F to +158°F) wide temperature range operation and only requires +12V DC power input into work. The CAPA112 is ideal for applications requiring a power-optimized, rich-graphics and easy integration platform, such as medical imaging, digital signage, kiosks/POI, thin clients and gaming machines.

“Axiomtek’s new CAPA112 is designed for embedded applications that require small, low-power form factor, especially applications that need full legacy ISA support. The fanless design makes the platform more reliable, without dust or noise issues. It is also designed to work in harsh environments, with wide operating temperature ranging from -40°C to +70°C. It is an ideal choice for system integrators who are in search of a high-quality, feature-rich, small SBC with high-end graphics capability and fanless operation,” said Michelle Mi, product manager of Axiomtek’s Product Marketing Division.

Axiomtek’s CAPA112 is powered by AMD G-Series single core T16R or dual core T40E APU with A55E FCH and has an advanced graphic engine with DirectX 11 supported. It features 18/24-bit single/dual channel LVDS and VGA interface with dual-view compatibility. The CAPA112 provides outstanding visual experience while maintaining very low-power consumption.

While measuring only 146 x 104 mm, the compact CAPA112 comes with advanced connectivity including six USB 2.0 ports, one SATA-600 port, one CFast™ socket, four COM ports with 5V/12V support (3 x RS-232 & 1 x RS-232/422/485), eight digital I/O ports, dual Gigabit LANs, VGA, LVDS, and HD audio. In addition, it provides high-bandwidth expansion capability with one PCI Express Mini Card and one PC/104 for ISA bus. The embedded SBC supports Windows 7, Windows XP Embedded, and Linux. To ensure reliable operation, it supports watchdog timer and hardware monitoring features.

Features:

- Fanless operation

- AMD G-Series APU T16R (615 MHz) single core or T40E (1.0 GHz) dual core

- Built-in AMD FCH A55E

- One DDR3 SO-DIMM supports up to 4 GB memory capacity

- Supports one SATA-600, two Gigabit Ethernet, six USB 2.0 ports, four COM ports and CFast

- Display: one VGA and one LVDS (18-bit single channel or 24-bit single/dual channel)

- PC/104 slot for 16 bit ISA bus/>

- PCI Express Mini Card

- +12V only DC-in supported

- Wide range of temperature from -40°C to +70°C
