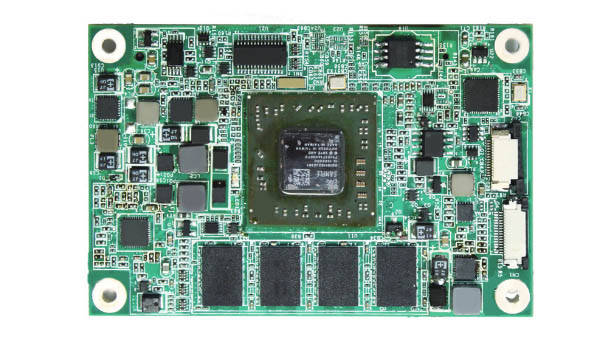

The EmNANO-a56M0 soldered onboard AMD G-Series SoC which integrates a faster “Jaguar” x86-based CPU The new module use the GX- 210HA 1.0GHz dual core with a 9 Watt TDP as well as a faster Radeon HD 8210 GPU, leading to extraordinary low-power consumption and high graphic performance benefits for the new factor board. The EmNANO-a56M0 is equipped with 2GB DDR3L SDRAM and features dual independent displays, single channel 18-bit LVDS and DDI interfaces.

A gigabit Ethernet controller is also available, plus rich I/O and expansion connectivity for multiple choices in different applications include eight USB 2.0 ports, three PCIe x1 lanes, and two SATA ports. The new form factor with a footprint of just 55 mm x 84 mm is the smallest size in ARBOR’s COM Express product lineup, which makes it ideal choice for those who require smaller, lighter, and lower power embedded computing solution.

Features:

－ Soldered onboard AMD G-Series SoC Dual Core 210HA processor

－ Integrated Gigabit Ethernet

－ Single Channel 18-bit LVDS and 1 x DDI port

－ Supporting Dual Independent Displays

－ Extended Operating Temp.: -20 ~ 70°C
