Built around user-convenience, this stylish touch panel PC adopts a less screw and slim mechanism design. The slim-type industrial grade panel unit supports complete expandability features, including dual display interface, one expansion slot, eight USB 2.0 ports, four COM ports and Wi-Fi connectivity, making it suitable for kiosk, factory and automation.

“The less screw design makes P1197E-861 easy to install The compact form factor and IP65 compliant housing make it reliable to operate in any extreme environment. Its slim yet expandable design also fulfills different requirements,” said Debbie Tu, Product Manager of Product Marketing Division at Axiomtek.

In addition, this outstanding all-in-one unit supports 4 COM ports, 8 USB 2.0 ports, flexible expansion interface (one PCIe x4 slot or one PCI slot), built-in speakers and optional Wi-Fi 802.11 b/g/n module and supports two 2.5" SATA HDD trays for easy maintenance. The P1197E-861 is an excellent solution for factory automation, kiosk and more industrial fields.

The P1197E-861 has 1 PCIe x4 or 1 PCI slot for expansion purpose. User can easily plug in standard half-size PCIe or PCI card based on any application needs. The 19-inch industrial touch panel PC features built-in speakers for kiosk application to display multimedia content program. It also supports WLAN module antenna (optional) for wireless network connectivity.

The all-in-one P1197E-861 supports two 2.5” SATA HDDs with convenient side access trays. Without the complicated steps, users can maintain hard drive easily that make the work more efficiency.

There are only three screws on the back chassis, which users can quickly remove it and install with ease. It saves time, maintenance cost and increases work efficiency.

To withstand harsh operating environments, the expandable panel system is made with robust aluminum housing and has an IP65/NEMA 4 water/dust-proof protection to prevent the system from outside damage.

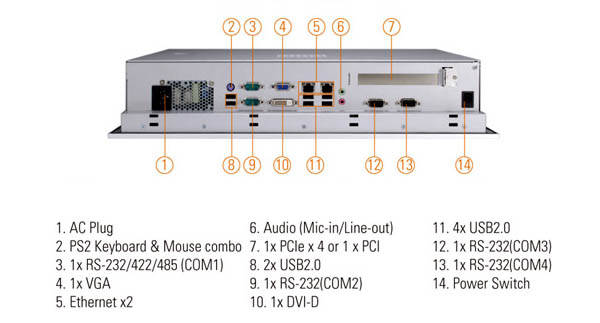

Axiomtek P1197E-861 includes two DDR3-800 SO-DIMM sockets with up to 16 GB memory. Interfaces for DVI-D, VGA, four COM (3 x RS-232, 1 x RS-232/422/485), eight USB 2.0 (two front USB & six back USB), two Gigabit Ethernet ports, audio (Line-out), and two 2.5” SATA HDD drive bays are available.

Features:

 19-inch SXGA TFT expandable industrial touch panel computer

 Supports 3rd & 2nd Generation Intel Core™ i7/ i5/ i3/ Celeron/ Pentium processors in LGA1155 socket with Intel H61 Express chipset

 IP65-rated water/dust-proof front bezel and NEMA 4 protection

 Friendly less screw design for user’s convenience

 Expandable for one PCIe or one PCI slot

 Speaker and WLAN antenna supported

 Dual view support (DVI-D and VGA interfaces)

 Four COM ports (three RS-232, one RS-232/422/485), eight USB 2.0 ports, two Gigabit Ethernet ports and audio (Line-out)

 Supports panel mount, wall mount, VESA arm ,rack mount and desktop stand

 Supports various embedded operating systems including Windows XP, Windows Vista, Windows 7, Windows Embedded 8
