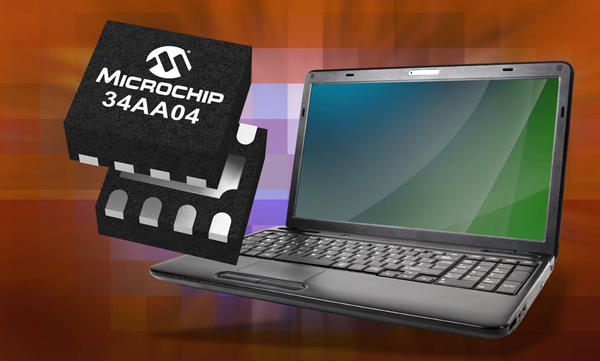

This new device is designed for the price-competitive consumer products market and is capable of operation across a broad voltage range (1.7V to 3.6V). This device is JEDEC JC42.4 (EE1004-v) Serial Presence Detect (SPD) compliant and is designed to be compatible with DDR4 SDRAM modules.

The 34AA04 includes reversible software write protection for each of four independent 128 x 8-bit blocks and supports a new SMBus compatible bus time out. The device features a page write capability of up to 16 bytes of data and 3 address pins allow up to eight devices on the same bus.

The 34AA04 is backward compatible with existing DDR2 and DDR3 SPD EEPROMs. To ensure backward compatibility, the memory array of the 34AA04 is divided into two separate 256-byte banks to overlay with the architecture of older SPD EEPROM devices. The 34AA04 serves a wide range of applications in the consumer-electronic market (e.g., PCs, laptops, graphic cards), among others.

“Microchip has supported the DRAM market with SPD EEPROMs in prior DDR1, DDR2 and DDR3 platforms and is pleased to announce our new JEDEC-Compliant SPD EEPROM devices for the DDR4 DIMM modules,” said Randy Drwinga, vice president of Microchip’s Memory Products Division.

“The reversible software write-protect on four individual blocks, faster data rates and SMBus compatibility offers DRAM manufacturers added flexibility to enable new features in the high-speed PC, laptop and graphic card markets.”

Features:

－ 4 Kbit I2C EEPROM

－ Internally organized as two 256 x 8-bit banks

－ Byte or page writes (up to 16 bytes)

－ Byte or sequential reads within a single bank

－ JEDEC® JC42.4 (EE1004-v) Serial Presence Detect (SPD) compliant for DRAM (DDR4) modules

－ Industry standard 1 MHz, 400 kHz, and 100 kHz

－ SMBus-compatible bus time out

－ Cascadable up to eight devices

－ Reversible software write protection for four individual 128-byte blocks

－ Voltage range: 1.7V to 3.6V

－ Write current: 1.5 mA at 3.6V

－ Read current: 200 μA at 3.6V, 400 kHz

－ Standby current: 1 μA at 3.6V

－ More than one million erase/write cycles

－ Data retention: > 200 years

－ 8-lead PDIP, SOIC, TSSOP, TDFN, and UDFN Packages

－ Industrial (I): -40°C to +85°C

－ Automotive (E): -40°C to +125°C
