22-inch Widescreen Fanless Touch Panel Computer with IPX1 Design

Published: Apr 25,2014

994 Read

Axiomtek announce the IFO2225-873, 22-inch widescreen fanless touch panel computer for infotainment system. This user-friendly all-in-one industrial touch panel PC supports the 3rd Generation Intel Core i7/i5/i3 and Celeron processors with Intel QM77 Express chipset.

More on This

Axiomtek Announces IFB125, a Compact, Rugged RISC-based Industrial IoT Gateway

Axiomtek announced the launch of its robust RISC-based DIN-rail industrial IoT gateway, IFB125, which is powered by the low-power Freescale i...

Axiomtek’s MPC102-845 – EN 60601-1 Certified 10.4” Medical-grade Touch Panel PC

Axiomtek announced its newest EN 60601-1 certified 10.4” medical-grade panel PC, the MPC102-845. This compact medical ...

It has IPX1 compliant chassis and IP65 rated spill- and dust-resistant front panel and is equipped with a 22-inch WSXGA TFT LCD display (250nits). This slim-type infotainment terminal provides an excellent thermal solution with the patented design of the back aluminum chassis to dissipate heat efficiently and enhance system reliability. The IFO2225-873 is ideally suited for human machine interface platform for applications in hotel/ airport check-in/out, shopping mall, restaurant, self-ordering counters, and building visit control.

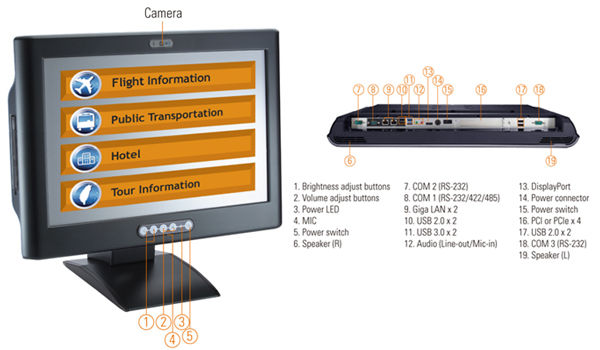

“The new 22” IFO2225-873 comes with an industrial design with refined aesthetics, and brings the easy-to-deploy feature and advanced user experience to a variety of commercial and industrial applications. To meet diverse application needs, the IFO2225-873 has rich expandability interface, including two RS-232 ports and one RS-232/422/485 port, four USB 2.0 ports, two USB 3.0 ports, one PCIe x4 slot or one PCI slot, two PCI Express Mini Card slots, and one DisplayPort. The system also has built-in 5 mega pixels camera and microphone/speakers offering identification recognition and more multimedia options to interact with viewers,” said Virgil Hsu, Product Manager of Product Marketing Division at Axiomtek.

“Furthermore, the touch panel PC has an antenna for wireless (802.11 b/g/n) connection and dual Gigabit Ethernet ports for high speed Ethernet as well as a high reliable redundancy host connection.”

The IPX1-rated water/dust-proof housing protects the entire system from outside damage caused by water drip damage while installed at public or enclosed environments. Its unique mechanical design improves system stability while saving time and money on maintenance costs and re-installation time.

This fanless touch panel computer features a convenient front access OSD (on screen display) design for user to perform adjustments easily without hassle. The IFO2225-873 is only 2.98" thick and can be panel-mounted, wall-mounted or VESA-mounted as well as installed using desktop stand.

Features:

- 22-inch WSXGA TFT fanless touch panel computer with Socket G2 for Intel Core i7/ i5/ i3/ Celeron

- Processor (Ivy Bridge) with Intel QM77 chipset

- Supports two DDR3 SO-DIMM slots maximum up to 16 GB

- Built-in 5 mega pixels camera and microphone/speakers

- IPX1-rated entire system and IP65-rated front bezel waterproof sealed design

- Optional 802.11 b/g/n wireless antenna and Bluetooth

- Two PCI Express Mini card slots and one PCIe x 4 slot or one PCI slot for expansion interface

- Supports two 10/100/100Mbps LAN ports, three COM ports and two USB 3.0 ports

- Storage: one 2.5” SATA HDD, one optional mSATA SSD

- Multi-angle stand, VESA ARM and wall mounts for flexibility in installation
