Intel Core-based Fanless Embedded System with PCI/PCIe Slots

Published: May 29,2014

1943 Read

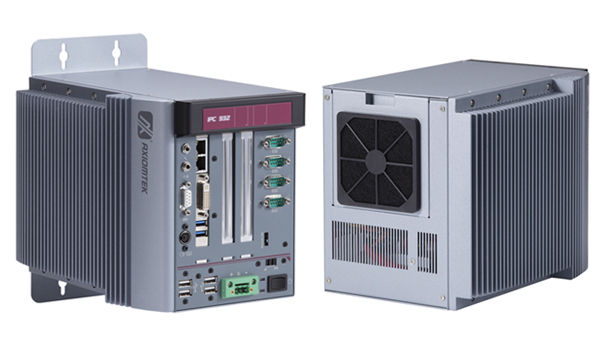

Axiomtek announce the arrival of the IPC932-230-FL, an expandable fanless barebone system with various front-facing I/O connectors. The powerful embedded system IPC932-230-FL supports LGA1150 socket for the 4th generation Intel Core processors coupled with the Intel Q87 Express chipset. Two 204-pin SO-DIMM sockets support up to 16 GB DDR3-1333/1600 system memory in maximum.

More on This

Axiomtek Announces IFB125, a Compact, Rugged RISC-based Industrial IoT Gateway

Axiomtek announced the launch of its robust RISC-based DIN-rail industrial IoT gateway, IFB125, which is powered by the low-power Freescale i...

Axiomtek’s MPC102-845 – EN 60601-1 Certified 10.4” Medical-grade Touch Panel PC

Axiomtek announced its newest EN 60601-1 certified 10.4” medical-grade panel PC, the MPC102-845. This compact medical ...

To fulfill different application needs, the compact industrial PC provides two flexible PCI/PCIe expansion slots with two different combinations: one PCIe x1 and one PCIe x4 or one PCIe x4 and one PCI. Its DVI-I output on the front panel allows user to directly connect to a LCD panel and four COM ports and a DIO are provided for general industrial control. This all-in-one barebone system also has two easy-to-install 2.5” SATA HDD drive bays with RAID 0/1, and supports Intel® Active Management Technology 9.0 (AMT 9.0) to enhance overall device manageability.

The newest IPC932-230-FL adopts flexible open-architecture design for easy maintenance and simple upgrade. The system supports a wide range DC power input, 10 VDC to 30 VDC, allowing it to be powered anywhere, no matter if a 12 VDC or 24 VDC source or a 19 VDC power adapter is available. It comes with rich I/O connectors including two Gigabit Ethernet ports, two USB 3.0 ports, four USB 2.0 ports, four COM ports, one DVI-I output, one Digital I/O, CFast™ socket, and audio (Line-in/MIC-out).

Features:

- Onboard 4th generation Intel Core processor with Intel Q87 chipset

- Fanless operation and low power consumption

- High performance DDR3-1333/1600 SO-DIMM max. up to 16 GB

- DC to DC power supply supports 10~30V

- Operating wide temperature range of -10°C ~ +50°C with W.T. SSD

- Two 2.5" SATA HDD drive bay and CFast socket

- Rich I/O includes one DVI-I, one HD Audio, one Digital I/O, two 10/100/1000Mbps Ethernet, two RS-232, two RS-232/422/485, two USB 3.0, four USB 2.0 and one PS/2 for keyboard mouse
