New Era of Ultra-Low Power with New MSP430 FRAM MCU
Published: Jun 30,2014116 Read
Texas Instruments (TI) announced its comprehensive ultra-low power FRAM microcontroller (MCU) platform with all the necessary hardware and software tools, and support for developers to reduce energy budgets, minimize product size and enable a battery-free world. TI's new MSP430FR59x/69x FRAM MCU families with EnergyTrace++ real-time power profiler and debugger range from 32 to 128 KB embedded FRAM.
Smallest Data Converters Deliver High Integration and Performance
Texas Instruments (TI) introduced four tiny precision data converters, each the industry’s smallest in its class. The ...
TI Introduces a New Family of LED Drivers with 12-bit PWM, 29-kHz Dimming Frequency
First 12-bit, 29-kHz RGB LED Driver Family Enables Vivid Color and Seamless Animation with Zero Audible Noise Texas I...
These MSP430 MCUs are ideal for smart utility metering, wearable electronics, industrial and remote sensors, energy harvesting, home automation, data acquisition systems, the Internet of Things (IoT) and many more applications that require ultra-low power consumption, flexible memory options and smart analog integration.
TI's MSP430 MCUs with EnergyTrace++ technology designed from the ground up to enable the world’s lowest power microcontroller systems.
TI's innovative ultra-low-leakage (ULL) proprietary technology with embedded FRAM delivers the world's lowest system power with active power of 100 uA/MHz, accurate-RTC standby power of 450 nA and industry-leading power performance across temperature range from -40 to 85 degrees Celsius.

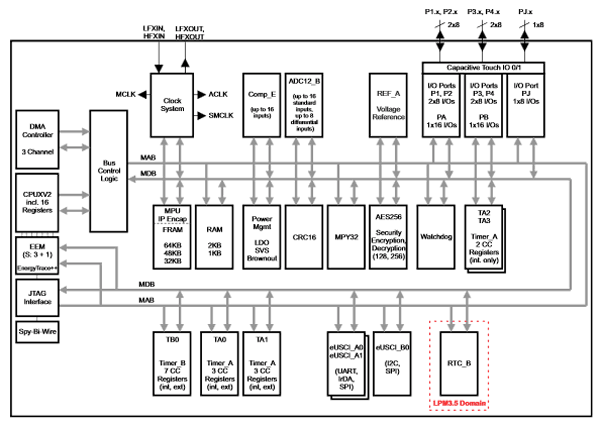

The new FRAM MCUs include a variety of smart analog peripherals, such as a differential input analog-to-digital converter (ADC) that consumes as little as 140 uA at 200 ksps and an enhanced scan interface for flow metering that can operate while the system is in standby, resulting in 10 times lower power. In addition, an integrated 8-mux LCD display and 256-bit Advanced Encryption Standard (AES) accelerator reduce power consumption, bill of materials and board space.
TI's new EnergyTrace++ technology is the world's first debug system that enables developers to analyze power consumption down to 5nA resolution in real-time for each peripheral. This allows engineers to take control of their power budget and optimize software to create the lowest energy product possible. This new technology is now available for both MSP430FR59x and MSP430FR69x MCU families and with the new low-cost MSP430FR5969 LaunchPad development kit.
In addition to the outstanding power-saving benefits, TI's MSP430FR59x/69x FRAM MCU families exceed developers' needs with unmatched:
Infinite Endurance. The unbeatable read/write speeds mean FRAM MCUs have more than 10 billion times more write-erase cycles than traditional non-volatile memory solutions – outlasting the product lifetime itself.
Flexibility. FRAM has the unique ability to free developers from the traditional boundaries between code and data memory. Users no longer need to be confined to industry-standard flash-to-RAM ratios or pay a premium for increased RAM needs.
Ease of use. FRAM simplifies code development. Since FRAM does not require pre-erasure of segments and can be accessed at the bit-level, constant on-the-fly data logging is now possible. Wireless firmware updates are less complex, faster and lower energy.
Features:
- FRAM is the only non-volatile embedded memory that can be written at 8MBps in under 800uA – more than 100 times faster than flash.
- Ease development with pin-to-pin compatibility and a scalable portfolio of 32 – 128KB devices within TI's ultra-low power MSP430 FRAM MCU product platform.
- Leverage MSP430Ware to simplify migration with code and peripheral compatibility between MSP430 FRAM and flash portfolios.
- Replace EEPROM to design secure products with faster write times, lower power and higher memory reliability.
- A 256-bit AES accelerator enables TI's FRAM MCUs to secure data transmissions.
- Extensive resources for developers include detailed migration guides and application notes to ease the migration from existing silicon to MSP430FR59x/69x MCUs.
