High-Performance 4th Gen Intel Core Mini ITX Motherboard with HDMI
Published: Sep 03,201427 Read

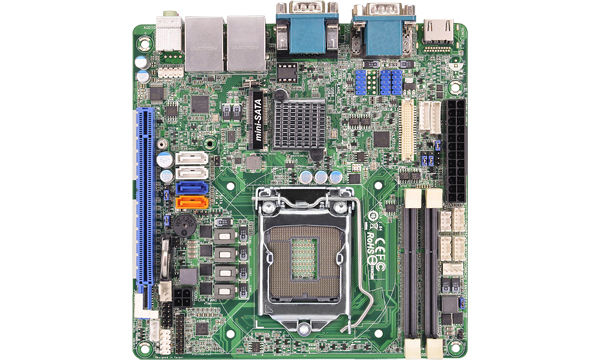

Axiomtek announced the arrival of the MANO881, its new mini-ITX motherboard with Intel H81 Express chipset. The product offers socket H3 - LGA1150 that supports the 4th generation Intel Core and Celeron (Haswell) processors.
Axiomtek Announces IFB125, a Compact, Rugged RISC-based Industrial IoT Gateway
Axiomtek announced the launch of its robust RISC-based DIN-rail industrial IoT gateway, IFB125, which is powered by the low-power Freescale i...
Axiomtek’s MPC102-845 – EN 60601-1 Certified 10.4” Medical-grade Touch Panel PC
Axiomtek announced its newest EN 60601-1 certified 10.4” medical-grade panel PC, the MPC102-845. This compact medical ...
This feature-rich board has two sockets for DDR3 system memory of up to 16 GB. The high-performance mini-ITX motherboard MANO881 supports one PCIe x16 slot and integrated with Intel® HD 5000 graphics supports powerful graphic processing and dual-display capability through HDMI, VGA and LVDS interfaces.
The outstanding embedded board also includes rich I/O expansions which can help system integrators to develop solutions quickly at a more competitive price. The MANO881 is excellent for in-vehicle PCs, medical imaging and gaming devices, in-flight entertainment systems, industrial automation systems, and other portable devices.
“Our new MANO881 is a great choice for customers who need a cost effective and flexible embedded board with rich I/O and powerful performance. It also supports three independent high resolution displays: HDMI, VGA and dual-channel 24-bit LVDS, deliver better graphics and imaging for gaming, medical imaging, DVR, POS, kiosk, and 4K digital signage applications,” said Ken Lin, product manager of Product Planning Division at Axiomtek.
Axiomtek’sMANO881 comes with advanced connectivity including three RS-232-232/422/485 ports, three RS-232 ports, two USB 3.0 ports, eight USB 2.0 ports, two SATA-600, two SATA-300, two Gigabit LANs, HDMI, LVDS, VGA, digital I/O (8 channel programmable), and HD audio. Expansion capabilities include one PCIe x16 slot and mSATA socket. The motherboard supports watchdog timer and SMART FAN. This compact embedded platform also meets all requirements for the Windows® 7 & 8 OS.
Features
- Supports LGA1150 socket 4th generation Intel Core i7/i5/i3 and Celeron processors with Intel H81 chipset (codename: Haswell)
- Two 204-pin DDR3-1333/1600 SO-DIMM max. up to 16 GB
- PCIe x16 Gen2 supported
- Supports two SATA-600 and two SATA-300 interfaces
- Supports two USB 3.0 and eight USB 2.0 ports
- Supports three RS-232/422/485 and three RS-232 ports
- DualView display via HDMI/VGA/LVDS
- Dual Gigabit Ethernet supported|
