IPSS/OPS Compliant Digital Signage Player Supports Intel RCM, NFC, AVB and 4K Resolution

Published: Sep 17,2014

34 Read

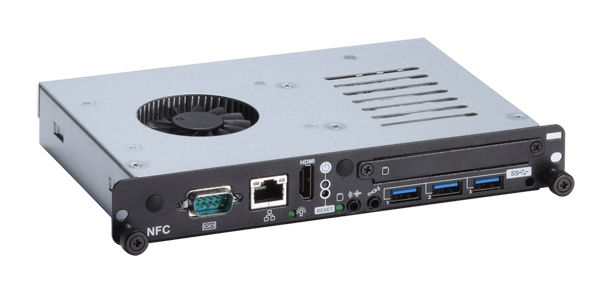

Axiomtek introduced OPS882-HM, its new Intelligent Pluggable Systems Specification (IPSS) compliant digital signage player with 4K support. The high-performing OPS882-HM adopts the 4th Generation Intel Core i5 processor with the Mobile Intel HM86 Express chipset.

More on This

Axiomtek Announces IFB125, a Compact, Rugged RISC-based Industrial IoT Gateway

Axiomtek announced the launch of its robust RISC-based DIN-rail industrial IoT gateway, IFB125, which is powered by the low-power Freescale i...

Axiomtek’s MPC102-845 – EN 60601-1 Certified 10.4” Medical-grade Touch Panel PC

Axiomtek announced its newest EN 60601-1 certified 10.4” medical-grade panel PC, the MPC102-845. This compact medical ...

To enhance audio and video quality, the OPS882-HM supports Audio Video Bridging (AVB) which audio and video data can be transported in real time at the highest quality with a high-speed Ethernet connection.

The OPS882-HM also supports Near-field Communication (NFC) to extend the reach of digital signage beyond its physical location and make it mobile and more actionable. Additionally, it features Intel Retail Client Manager (Intel RCM), a software solution that provides easy-to-use digital signage content management system with analytics.

The OPS882-HM is excellent for various display applications in shopping mall, corporate, education, bank, transportation, retail store, restaurant, performing art center.

“Building upon the Intelligent Pluggable Systems Specification (IPSS), Axiomtek’s new OPS882-HM can provide digital signage vendors a comprehensive solution that reduces the development effort and enhances time to market and sales. We also include NFC and AVB functions to our OPS882-HM to extend its capability. The ultra-slim form factor with rugged design allows OPS882-HM to fit into a wide variety of digital signage applications,” said Robert Wang, Director of Sales & Marketing of the Digital Signage Business Unit at Axiomtek.

The OPS882-HM supports two DDR3L SO-DIMM sockets with memory up to 16 GB. In addition, it features one easy-to-access 2.5” SATA HDD as storage device. Two PCI Express Mini Card slots are available for graphics-enhanced video card, wireless LAN card for 802.11 b/g/n and 3G/GPRS, and tuner/AV capture card.

This smart pluggable module is connected to OPS-compliant display via a standardized JAE TX-25 plug connector, and includes DisplayPort, UART, audio, USB 3.0 and USB 2.0 signals. The OPS882-HM also features one 10/100/1000Mbps LAN port, one RS-232 port, one HDMI interface, and three USB 3.0 ports on front panel. Moreover, the feature of TPM 1.2 increases security and reliability and helps reduce deployment costs.

Features:

- Intel Intelligent Pluggable Systems Specification (IPSS) compliance

- Open Pluggable Specification (OPS) compliance

- Supports 4th Gen Intel Core i5 processor (Haswell)

- Intel HM86 chipset

- Two DD3L-1600 SO-DIMM slots support max. up to 16 GB

- Supports 3 USB 3.0 ports and 2 PCI Express Mini Cards

- HDMI for 2nd display

- Supports 4K resolution

- Supports TPM 1.2 function

- Supports AVB (Audio Video Bridging) feature

- NFC (tag) feature (optional)
