Through the use of new 22nm quad core Intel Atom E3845 processor, the eBOX620-841-FL offers both high computing performance and energy efficient operation. In addition, this extreme low power embedded platform is equipped with 8 GB DDR3L, dual displays and rich connection capabilities, making it an ideal solution for many applications including digital signage, transportation, POS, kiosk, industrial control automation and medical equipment.

The eBOX620-841-FL is rugged and designed to offer reliable operation in extreme temperature ranging from -20°C to +60°C (-4⁰F to +140⁰F). Its IP40-rated, rugged aluminum cold-rolled steel enclosure allows it to withstand operations in harsh environments and vibration of up to 3 Grms (with CFast). The industrial grade embedded platform has full power protection with OVP, OCP, SCP and is CE certified.

Axiomtek’s new eBOX620-841-FL is powerful, highly reliable and feature-rich. The noticeable fanless system offers DDR3L-1066/1333 SO-DIMM socket with 8 GB high capacity and multiple I/O ports for easy and fast deployment of industrial and embedded applications.

To address demand for rich network and wireless communications (Wi-Fi and GPS), the super slim platform comes equipped with two PCI Express mini card slots, one SIM card socket and three SMA-type antenna openings. Eight channels programmable DI/DO can be used to connect sensor or surveillance camera for environment control, surveillance monitoring, and security management. Moreover, the compact and feature-rich eBOX620-841-FL supports one 2.5" SATA HDD drive bay, one CFast socket and mSATA for storage advantage..

To fulfill different application needs and concerns limited space application, the eBOX620-841-FL has rich I/O features, including four high-speed USB 2.0 ports, dual Gigabit Ethernet ports, four COM ports (two RS-232/422/485 ports and two RS-232 ports), VGA, HDMI, and audio as well as a built-in Watchdog Timer. This high performance robust embedded system is fully compatible with the Windows® Standard Embedded 7/8 and Linux.

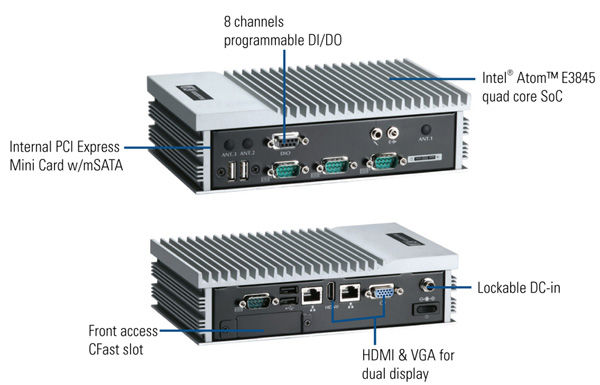

Features:

－ Extreme slim and compact design

－ Built-in Intel Atom E3845 1.91 GHz quad-core SoC

－ Fanless operation and noise free design

－ Aluminum extrusion and heavy-duty steel with IP40 standard

－ One 204-pin DDR3L-1066/1333 SO-DIMM max. up to 8 GB

－ One 2.5" SATA HDD drive bay, one CFast™ slot and mSATA supported

－ Dual display interfaces: VGA and HDMI ports

－ Two PCI Express Mini Card slots (USB+PCI Express signal) and one SIM slot

－ Four USB 2.0 ports, dual Gigabit Ethernet ports, four COM ports (2 x RS-232/422/485 and 2 x RS-232)

－ Operating temperature range of -20°C to +60°C(-4⁰F to +140⁰F)
