Low-Cost 8-bit PIC MCU Portfolio With New Devices Featuring Dual ADC Peripheral

Published: Sep 24,2014

818 Read

Microchip Technology Inc., announced a new addition to its PIC12/16LF155X 8-bit microcontroller (MCU) family with the PIC16LF1554 and PIC16LF1559 (PIC16LF1554/9) devices.

More on This

Industry’s Lowest-power LoRa System-in-Package Family

Microchip Technology introduced a highly integrated LoRa System-in-Package (SiP) family with an ultra-low-power 32-bit microcontroller (MCU)...

Industry’s Smallest Multi-output MEMS Clock Generator Offers Up to 80% Board Space Savings

Microchip Technology announced the industry’s smallest MEMS clock generator. This new device can replace up to three crystals and oscillators on a board...

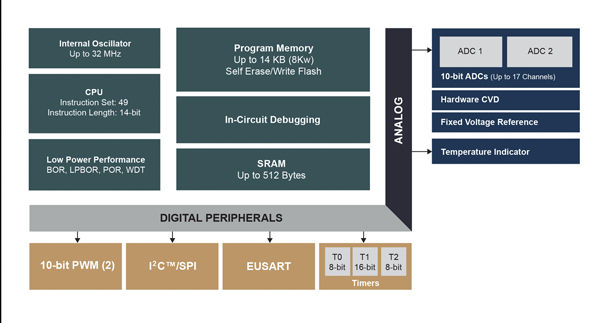

The PIC16LF1554/9 includes two independent 10-bit 100K samples per second Analog-to-Digital Converters (ADC) with hardware Capacitive Voltage Divider (CVD) support for capacitive-touch sensing.

This unique ADC configuration enables more efficient sensor acquisition and assists with advanced touch-sensing techniques for extremely noisy environments, low-power applications, matrix keypads and water-resistant designs.

The 14- and 20-pin PIC16LF1554/9 MCUs combine up to 17 ADC channels with automated hardware CVD modules to implement capacitive sensing and other front-end sampling applications with minimal software overhead.

These devices also include up to 14 KB Flash/512 Bytes RAM, a 32 MHz internal oscillator, two PWM modules, along with I2C, SPI and EUSART for communications.

Additionally, they are eXtreme Low Power (XLP) compliant with active and sleep currents of 35 µA/MHz and 30 nA, respectively, for applications where energy conservation is paramount.

These features, combined with the low cost and small footprint of the PIC16LF1554/9, make it well suited for a wide range of applications in the consumer-electronic (e.g., remote controls, audio players, cell phone accessories, small appliances, wearable devices such as headphones, watches and fitness wristbands), medical (e.g., blood-pressure monitors and wearable heart-rate monitors), automotive markets (e.g., automotive interior controls and control panels) and industrial markets (e.g., RFID and sensors), among others.
