Two 4” EPIC Form Factor with Intel 4 Gen. Core i Processor and Atom E3845 Processor
Published: Oct 01,2014972 Read

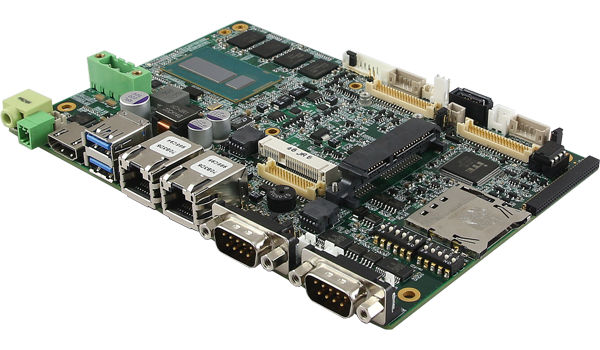

APLEX SBC-7110 (Haswell) Product
APLEX announce the launch of two new 4” EPIC form factor with Intel latest platform for embedded systems - SBC-7110 and SBC-7111.
APLEX to Participate in NIWeek 2016
APLEX Technology announced its participation in the 22nd annual NIWeek, where more than 3,200 innovators representing a ...
APLEX Industrial Panel PC Certified by ATEX Standard and IECEx Conformity
TAIPEI, Taiwan APLEX Technology announced its success in the ATEX and IECEx certification for the 15” Panel PC. The AE...
These two motherboards are targeted for low power with high computing performance and can fulfill demands of applications for gaming, medical, vehicle management, marine and factory automations.
The 4th Generation of Core i platform is proven working excellent for faster computing performance, approximately 10% improvement over the previous generation in terms of CPU performance. APLEX SBC-7110 adopting Intel 4th generation core i solution with onboard 4GB DDR3L memory delivers breakthrough CPU performance and amazing graphics capability.
Furthermore, SBC-7110 offers a multiplicity of I/O including: 2 x USB 3.0, 5 x USB 2.0, 1 x mini PCIe slot (full size), 6 x COM, 8-bit GPIO, and SATA III connector and 1 x SD slot. It supports dual-channel 18/24 bit LVDS and 1 x HDMI configurations; one audio jack support Realtek ALC662. For harsh environment markets, such as military and hazardous applications, SBC-7110 features wide range 9~36V DC power input and wide operating temperature at -20ํC to 70ํC.
However, for those who seek the balance of CPU computing performance and cost-efficiency, SBC-7111 is definitely an ideal solution. Powered by Intel Atom E3845/Celeron N2930 processor, APLEX SBC-7111 delivers excellent computing performance at minimal power consumption as well as advanced visual processing performance.
The onboard 2GB DDR3 SBC-7111 provides a full set of I/O interfaces such as 6 x USB 2.0, 1 x USB 3.0, 2 x 6pin VGA interface, dual channel 18/24 bits LVDS, 1 x HDMI, as well as 2 x SATA III ports, all of which make SBC-7111 ideal for factory automations, gaming machine, military and vehicle management and so on.
In order to meet a broad range of applications, each APLEX board is able to operate
under extremely temperature range from -20ํC to 70ํC and guarantees long life expectancies.
With regard to vertical applications, such as marine, vehicle management and military, APLEX’s industrial boards, for instance SBC-7110 & SBC-7111, offer enhanced stereoscopic 3D capabilities, high resolution graphics, which make them perfectly solutions for outdoor environment applications.
Features:
- Solid capacitor
- Extra long life span CMOS battery
- ESD protection
- Power connector reverse connection protection
- Auto dimming
- Operating temperature range -20ํC to 70ํC
