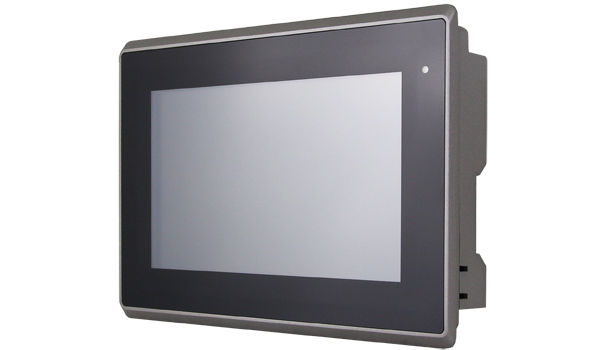

APLEX fanless ARCHMI-8xx(P) series features rugged design and provides the front bezel with IP65 rating to build up water and dust resistance. The Aluminum alloy die-casting enclosure provides superior heat dissipation and prevents dust intrusion resulting in less downtime under stringent industrial environment.

Armed with Intel Atom E3845/Celeron N2930 processor, ARCHMI-8xx(P) series delivers stunning improvements in computing performance and energy efficiency. Moreover, a combination of smart storage and APLEX’s unique thermal design provides an easily accessible feature and remains a compact outlook.

HMIs have been widely adapted by automation equipment for a long time. Nowadays, they are even more expanded to certain markets such as Point of Information, logistics, ATM or digital signage applications.

In responding to the increasing demands on HMIs, APLEX ARCHMI deploys 7xx series/8xx series and 9xx series and all of them feature fanless rugged IP65 solution and are characterized by Aluminum die-casting chassis with wide voltage (9~36V DC). In addition they all support PCT and optional resistive touch and provide a wide range of LCD selections from 7” to 21.5”, enabling industrial-grade users to facilitate their applications in specific markets.

Features:

－ A Complete LCD Lineup at 7”/8”/10.1”/12.1”/15”/15.6’/17”/18.5”/21.5”

－ Intel Bay Trail E3845(1.91GHz )/N2930(2.16GHz) CPU Built-in

－ Onboard 2GB DDR3L 1600 MHz/4GB(Option)

－ Aluminum Die-Casting Chassis Fanless Design

－ Easily Accessible Storage Design

－ Flat Front Panel Design Meets IP65 Standard
