Along with the pre-tested compatibility to work with Microsoft Azure IoT Suite, the NISE 50C can bring insightful eyes to modern practices of including asset management, predictive maintenance, and cloud-based monitoring.

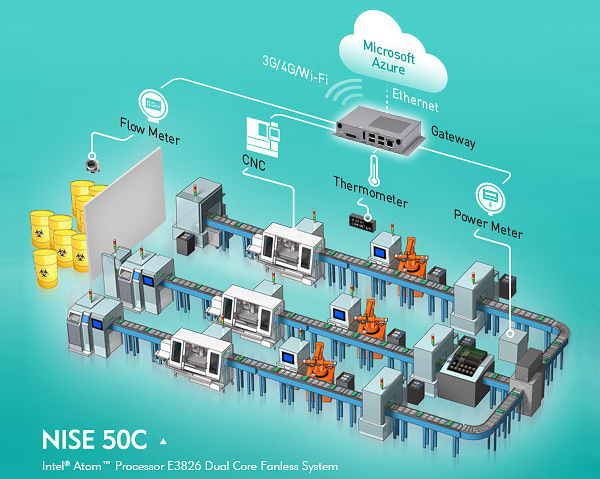

To empower IoT applications, NEXCOM IoT gateway NISE 50C is designed with control, communication, and connect capabilities suited to edge controllers and data concentrators. The IoT gateway can govern connected devices and manage the collection, storage, and transmission of sensor data.

To help dig for potential unexplored value in data, the NISE 50C is tested for readiness, compatibility and usability with the Azure IoT Suite, providing access to preconfigured solutions for data analysis and visualization apt for predictive maintenance in manufacturing.

Tailored for industrial uses, the NISE 50C comes with an onboard dual-core Intel Atom processor E3826, 2GB of RAM, 16GB of flash memory, an integrated set of interfaces including four USB 2.0, three RS232, and one LAN ports, and a compact fanless enclosure. Toughened for system reliability and availability, the NISE 50C can operate against environmental factors such as dust, shock, and vibration.

Features:

－ Onboard dual-core Intel Atom processor E3826

－ 4 x USB 2.0, 3 x RS232, 1 x HDMI ports

－ 1 x GbE LAN port with WoL, teaming, and PXE support

－ 3 x mini-PCIe slot for optional Wi-Fi/3.5G/LTE modules

－ Fanless design to support from -5 to 55 degree Celsius and 12V DC input
