High-Brightness LED Module Simplifies Designs and Manufacturing Processes

Published: Jan 29,2016

2036 Read

Vishay Intertechnology, Inc. introduced a new metal-core-based cool white LED power module featuring 12 high-brightness LEDs with high luminous flux of 4000 lm each at 1 A.

More on This

New Vishay Intertechnology Wireless Charging Coils Offer Direct Replacements for EOL Devices

Vishay Intertechnology introduced new powdered iron based, WPC-compliant (Wireless Power Consortium) wireless charging c...

Vishay Intertechnology Introduces New Commercial Inductors in Compact 1212 Case Size

Vishay Intertechnology, Inc. introduced three new commercial IHLP low profile, high current inductors in the 3.3 mm by 3...

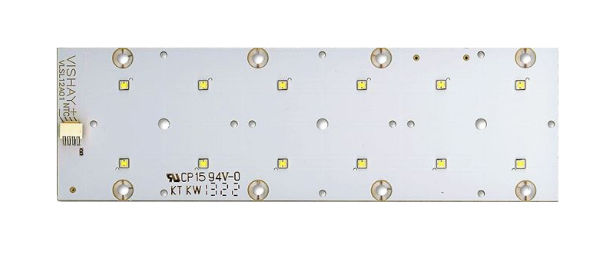

To simplify designs and manufacturing processes, the Vishay Semiconductors VLSL12A03-3Q3T-50A can be combined with off-the-shelf LEDiL quadruple lenses, while its integrated small thermal sensor (NTCS0603E347JHT) and fourfold plug-in connector (87438-0443) eliminate the need for additional soldering.

Optimized for illumination in internal building lighting, street lighting, tunnel lights, industrial lighting, and general lighting applications, the 12 LM80-certified LEDs of the VLSL12A03-3Q3T-50A are serially connected on an aluminum metal-core, single-side PCB measuring 161 mm by 50 mm by 2 mm and featuring a shiny white surface.

To allow for a variety of emission patterns, this layout is compatible with LEDiL 2x2 STRADA and High Bay quadruple lenses.

Based on InGaN (indium gallium nitride) technology, the VLSL12A03-3Q3T-50A provides a maximum current of 1500 mA, color temperature from 4700 K to 5500 K, power dissipation of 55 W, and forward voltage from 33.6 V to 40.8 V at 1 A.

The LED module offers an angle of half intensity of ± 60° and luminous flux binning. RoHS-compliant, halogen-free, and Vishay Green, the device provides ESD withstand voltage up to 2 kV in accordance with JESD22-A114-B.
