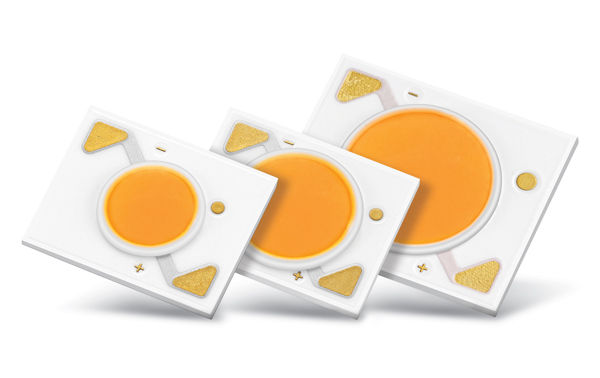

Samsung’s small LES LC series offers three alternatives: the LC010C with an operating wattage of 10W and an LES diameter of 6mm; the LC020C with 20W and an 8mm LES diameter; and the LC040C with 40W and an 11mm LES diameter.

The small LES LC series reduces the space required for the LES by 50 percent, while doubling the center beam candle power (CBCP) over that of existing standard COB LED packages. (The CBCP measures the luminous intensity at the center of the beam of a directional lamp, in a unit of candelas.)

Improved quality of light in the small LES LC series is enabled by Samsung’s Vivid color feature, which provides special color spectrums optimized for retail markets such as grocery and premium commercial stores.

The Vivid color spectrums add more brilliance to displays of fresh meat and fruits, for example. Samsung’s small LES line-up also features high CRI levels – over 80, 90 and 95 CRI respectively. These improvements will help satisfy requirements for premium commercial lighting applications, where color quality is a critical factor in lighting performance.

In addition, Samsung’s flip chip and phosphor dispensing technologies were adopted to reduce the size of the LES throughout the LC series, in compliance with Zhaga Book 12. The small LES LC series can increase cost effectiveness by significantly reducing the size of key elements within a luminaire such as its optics, heat sink and holders. Also, they can be easily adapted to be used in spotlight, even the ones with a narrow beam angle of between 15 and 25 degrees.
