Samsung’s LED Modules Based on Chip Scale Packaging

Published: Oct 12,2016

270 Read

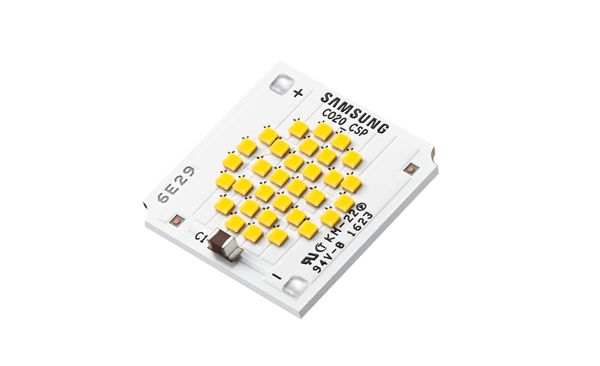

Samsung Electronics announced a new line-up of chip scale package (CSP) LED modules for spotlights and downlights that features color tunability and increased design compatibility.

More on This

Samsung Electronics Launches Industry’s First 24Gbps GDDR6 DRAM

Samsung Electronics announced that it has begun sampling the industry’s first 16-gigabit (Gb) Graphics Double Data Rat...

Samsung Starts Mass Production of 14nm EUV DDR5 DRAM

Samsung Electronics today announced that it has begun mass producing the industry's smallest, 14-nanometer (nm), DRAM based on extreme ultraviolet (EUV) technology...

The new LED modules are Samsung’s first to incorporate CSP technology, which bring a wide range of lighting benefits such as significantly reducing the size of a conventional LED package. The combination of advanced flip chip and phosphor coating technology eliminates metal wires and plastic molds to enable more compact designs when manufacturing LED modules and fixtures.

In addition to their size advantage, Samsung’s new CSP LED modules deliver further characteristics that furnish seamless tunable color. A color-tunable LED module requires twice the number of LED packages in cool and warm temperature, which work in combination on the same board to create a range of tunable colors.

In contrast to conventional plastic-molded LED packages that inevitably increase the size of the modules, Samsung's ultra-compact chip scale LED packages allow the module size to remain unchanged.

Samsung’s new CSP LED modules are available in two form factors (19x19mm or 28x28mm) and are designed following Zhaga specifications, making them highly convenient in assembling. The modules also provide high-quality lighting in diverse beam angle options – spot, medium, wide – for improved compatibility with the optical solutions of Samsung’s partners. The new modules are based on CSP LED packages that have successfully completed 9,000 hours of LM-80 testing, a level of proven performance that reduces the time to market for lighting manufacturers.
