Flexible 12-channel Automotive LED Driver from STMicroelectronics

Published: Oct 29,2019

492 Read

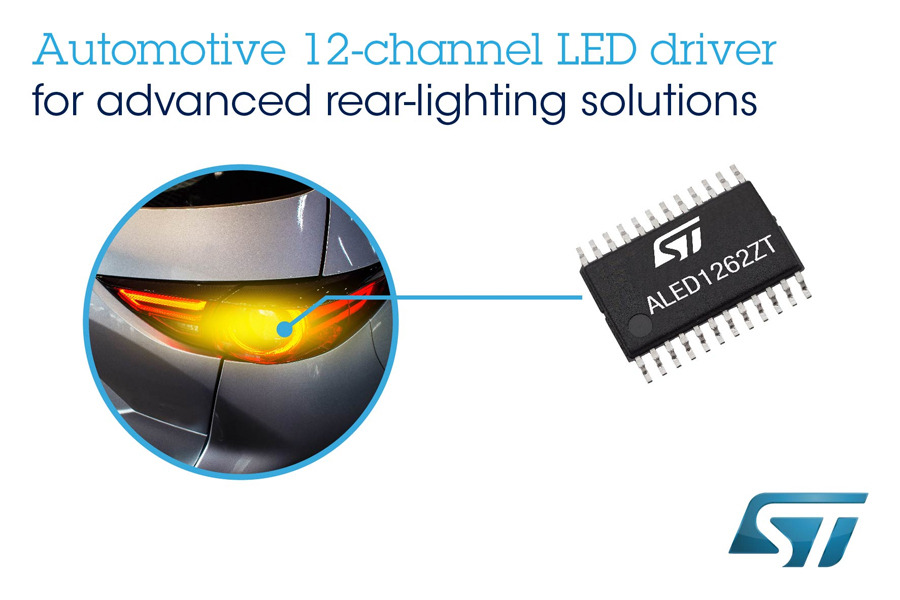

The STMicroelectronics ALED1262ZT 12-channel LED driver targets advanced automotive rear combination lamps and interior lighting, bringing features to support complex and innovative visual effects.

More on This

STMicroelectronics Reveals Latest Innovation in EV Energy Management for Cleaner and Safer Mobility

STMicroelectronics has revealed new battery-management technology that increases reliability, safety, driving range, and cost-effectiveness of electric vehicles (EVs)...

Ultra-Low Power and Security for IoT Come First on New STM32L5 MCU from STMicroelectronics

STMicroelectronics announces ultra-low-power STM32L5x2 microcontrollers (MCUs) that emphasize security to assure better protected IoT-connected applications...

Independent 7-bit PWM dimming on all channels allows flexible control of tail, stop, and indicator lights, with dynamic effects. Each channel delivers constant output current at 19V for controlling multi-LED series strings. Adjustment from 6mA to 60mA ensures a wide dimming range with high maximum brightness. The LED lighting driver responds to I2C commands from a host microcontroller and provides two pre-programmed configurations that allow standalone operation for extra flexibility.

With diagnostic features including open-LED detection and over-temperature warning with thermal shutdown, the ALED1262ZT ensures long-lasting robustness and stability. The input-voltage range from 5.5V to 38V allows use in direct battery-connected systems. In addition, the ALED1262ZT is designed for low-noise operation, with slow turn-on/off time per channel and spread-spectrum clock operation to simplify integration with other in-vehicle electronics.

The ALED1262ZT is in production now, in a 6.4mm x 7.8mm thermally efficient HTSSOP24 exposed-pad package.

ST has also released an evaluation board, STEVAL-LLL002V1 to help designers explore the ALED1262ZT’s features and jump-start new lighting designs.
