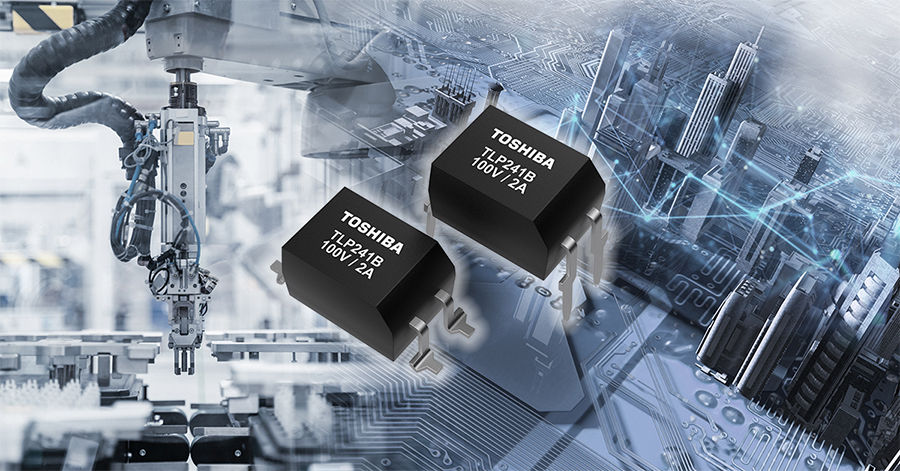

TLP241B has integrated MOSFET based on Toshiba’s latest generation of U-MOS process. With TLP241B, the OFF-state output terminal voltage is extended to 100V, a 150% improvement from the 40V of the current TLP241A. It is housed in a versatile DIP4 package, and is the industry’s first DIP4 packaged product to deliver 100V OFF-state output terminal voltage, 2A ON-state current and 5kV isolation voltage. This rating expansion covers a variety of applications.

TLP241B can replace a 1-Form-A contact mechanical relay. Unlike mechanical relays, TLP241B has no moving contacts to degrade. Its low current drive feature also improves product life. Other benefits are fast response time and PCB space saving due to smaller package size.

Since the maximum operating temperature rating is 110℃, temperature design margins of equipment are easier to obtain.
