Screw-Terminal Power Aluminum Capacitors Feature Long Life of 10,000 Hours at +85 °C
Published: Oct 17,2014329 Read
Vishay Intertechnology, Inc. today introduced a new series of screw-terminal power aluminum capacitors designed for traction and heavy-duty applications. Devices in the Vishay BCcomponents 110 PHT-ST series offer a long useful life of 10,000 hours at +85 °C and high ripple current to 19.76 A at +85 °C in large 76 mm by 146 mm and 76 mm by 220 mm case sizes.
New Vishay Intertechnology Wireless Charging Coils Offer Direct Replacements for EOL Devices
Vishay Intertechnology introduced new powdered iron based, WPC-compliant (Wireless Power Consortium) wireless charging c...
Vishay Intertechnology Introduces New Commercial Inductors in Compact 1212 Case Size
Vishay Intertechnology, Inc. introduced three new commercial IHLP low profile, high current inductors in the 3.3 mm by 3...

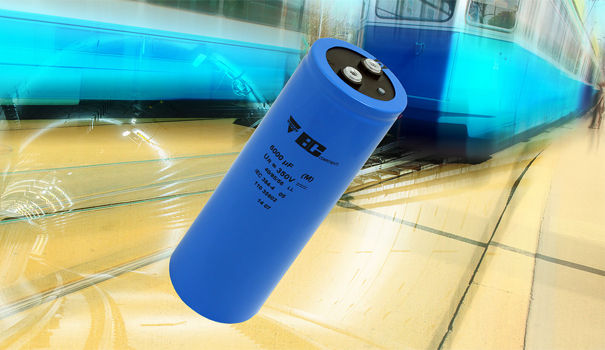

Featuring a cylindrical aluminum case insulated with a blue sleeve and pressure relief in their sealing disc, the capacitors released today combine their long useful life with high capacitance of 6000 µF over a voltage range of 250 V to 450 V.
Additional capacitance and voltage values are available on request. The devices offer tight tolerance of -10 % / +30 %, low maximum ESR down to 17.6 mΩ, and a wide operating temperature range from -40 °C to +85 °C.
As polarized aluminum electrolytic capacitors with a non-solid electrolyte, 110 PHT-ST series devices are optimized for rail traction in trains, subways, and light rail systems, in addition to power supplies in heavy-duty industrial applications.
The capacitors are available with 13 mm high-current M5 and M6 discs, 18 mm high-current M6 discs, and 1/4-28 UNF discs. The devices are RoHS-compliant and available in standard or bolt-nut versions.
