Precision Voltage Reference Drives Up to 200mA, Achieves 0.1ppm/mA Load Regulation & 10ppm/°C Drift

Published: Nov 04,2016

444 Read

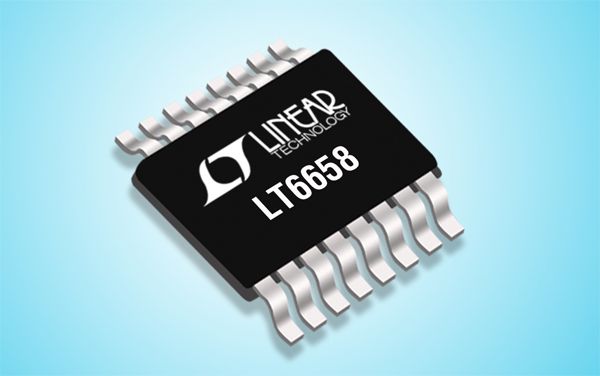

Linear Technology announces the LT6658, a precision voltage reference that incorporates two high current output buffers. Based on a 2.5V bandgap voltage reference, each output can be separately configured for any voltage between 2.5V and 6V. Both outputs offer 0.05% initial accuracy, 10ppm/°C temperature drift and only 1.5ppm of low frequency noise.

More on This

40VIN, 2A Silent Switcher µModule Regulator in 6.25mm x 4mm BGA Package

Analog Devices, Inc., which recently acquired Linear Technology Corporation, announces the LTM8063, a 40VIN, 2A µModule step-down regulator in a tiny 6...

Dual Input Prioritizer Provides Low Quiescent Current Backup Supply Switchover Solution

Analog Devices, Inc., which recently acquired Linear Technology Corporation, announces the LTC4418, a dual input power prioritizer for 2...

The outputs can drive up to 50mA and 150mA, respectively, and sink up to 20mA. Typical load regulation is only 0.1ppm/mA with up to 150mA of load current. In parallel, the buffer outputs can be combined for even higher current capability.

The LT6658 is ideal for driving the reference input for a high resolution ADC or DAC using one output, while simultaneously supplying power to other devices using the second output. Both outputs track each other over temperature and load, allowing them to address applications requiring ratiometric supply rails.

The outputs have excellent supply rejection and are stable with up to 50μF over the entire specified operating range. With this output capability, the LT6658 can serve as both reference and regulator combined. Alternatively, the LT6658 can be used to generate a reference plus a virtual ground, or as two matched, tracking references.

“The increasing customer demand for precision voltage references with regulator-like drive has inspired us to create these ultra-buffered references,” says Brendan Whelan, Design Manager for Linear Technology. “The result is the groundbreaking LT6658 Refulator.”

The LT6658 is currently available in a 2.5V version. Options for 1.2V, 1.8V, 3V, 3.3V, and 5V will be available in the first half of 2017. Prices start at $2.35 each in 1,000-piece quantities.
